Established nearly 50 years ago, Pailton Engineering designs, manufacturers and tests bespoke steering systems for large vehicles, including military, haulage and construction vehicles. Over the last two decades, the Pailton team has developed a long-standing relationship with various military vehicle OEMs, providing the likes of ball joints, drag links and steering columns.
The team at Pailton Engineering received a new project request, regarding a tender for a military-grade drag link assembly. This specification was unlike any they had designed and manufactured before.
Downsizing

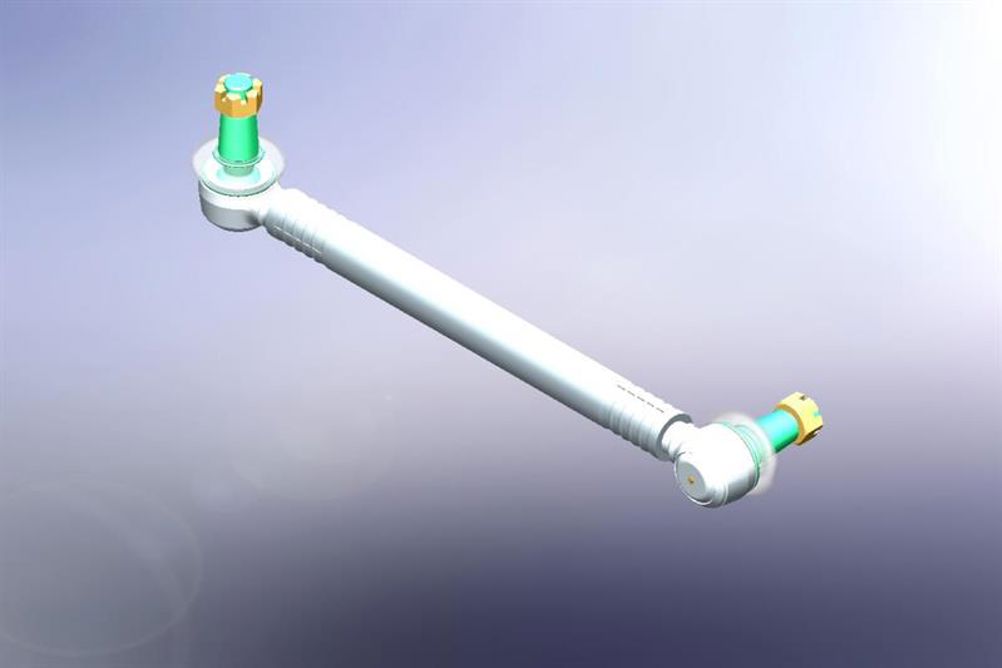

A drag link is made up of two ball joints with an intermediate tube. The military vehicle OEM was looking for a steering specialist to design and create a small, lightweight drag link assembly that would allow the vehicle to remain light and nimble, but also have the strength to handle the maximum load values the vehicle could face during its extreme application.
"The vehicle in question was a light weight personnel carrier, with speed being the key feature of its design," said Eric Sonahee, design and development engineer at Pailton Engineering. "Designed to have a top speed of 70mph, it has the potential to be one of the most agile and nimble military vehicles in the industry.
"This is why every gram of weight counted. So, the drag link needed to be able to withstand maximum usage loads in one small, light and compact part.This was no easy task, especially considering that this vehicle could be used all over the world and, therefore, needed to be tested against temperatures as low as -40°C."
Competition
Pailton’s team of designers analysed the loading information, selected the right joints by carrying out theoretical calculations on all aspects of the assembly. However, this standard way of working wasn't sufficient for such a non-standard request.
"As the customer wanted such a small, light joint, just carrying out a theoretical calculation wasn't enough," said Sonahee. "So, we also undertook a variety of physical testing to find a small enough part to fit the brief — which was incredibly challenging. We then took a different path to get around this problem, keeping the same geometry of the drag link but changing the material to a lightweight, yet strong, alternative."
Testing matters
Pailton continually carried out testing of this non-standard drag link throughout the design process to very accurate loads, in order to generate detailed findings. This was especially important as the military vehicle OEM wanted to put their vehicles straight into an intensive test program, and was expecting the components to perform to the highest level.
Winners
The OEM had multiple test vehicles set up at its site to test different parts from a range of potential suppliers. These vehicles were intensively trialled on an assault course, simulating driving thousands of miles over the duration of a just a week.This gruelling process proved that Pailton Engineering's components, as well as the team’s attention to detail, was unbeatable. This lead to them eventually winning the contract
While this customer may have thrown a curve ball with this unique brief, Pailton Engineering proved that anything is possible with bespoke design and rigorous testing.
