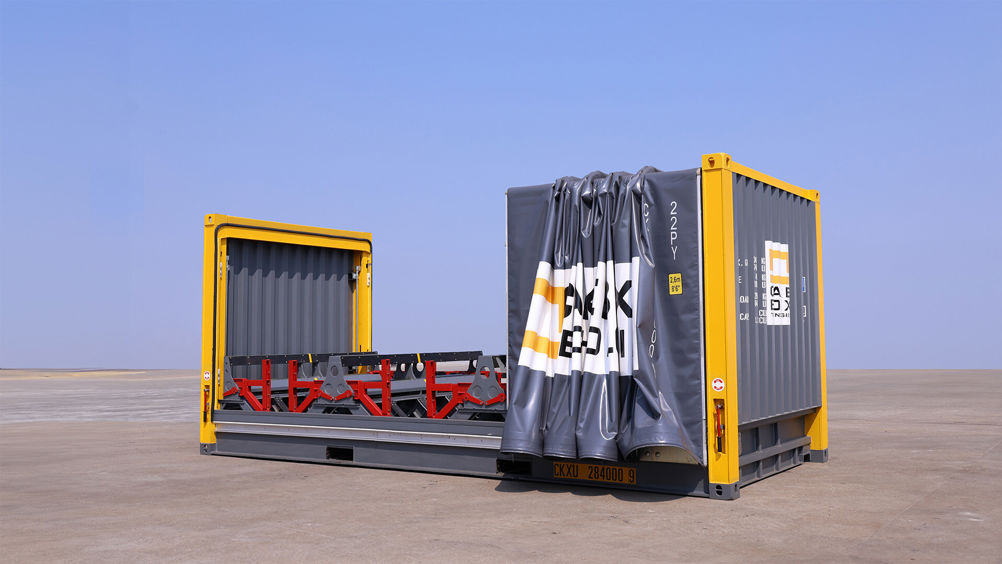

Designed for transporting steel coils and other heavy-duty materials, FlexBoxx builds on the innovation of the original CoilBoxx, launched in 2019. This new model offers unmatched flexibility and ease of use for various industrial applications.
FlexBoxx™ is available in 20ft and 40ft variants. The 20ft design encompasses a waterproof, sliding tarpaulin system and adjustable cradles to accommodate steel coils ranging from 900mm to 2100mm in diameter and up to 2000m in width or other heavy-duty materials and products. Its tarpaulin system opens from either end, making loading and unloading easier than ever. With a tare weight of 4,700 kg (10,360 lbs) and a payload of 29,300 kg (64,600 lbs), it is designed to handle the demands of intermodal transportation across marine, rail, and road networks.
CakeBoxx Technologies developed FlexBoxx to address the need for a versatile coil transport solution that can adapt to various sizes and types of cargo. A key advantage is that a single operator can adjust the clamping system to tightly secure cargo from either side of the container. FlexBoxx™'s modular design with removable cradles also makes it suitable for transporting other goods, offering new possibilities for industries beyond metals.
Why CakeBoxx Innovated the FlexBoxx With CakeBoxx Technologies' legacy of innovation across its entire product line, customers from various industries expressed the need for a container that offered even greater flexibility and ease of operation for coils. FlexBoxx answers that call by providing a solution capable of handling diverse coil sizes with increased safety, adaptability, and ease of use. Its ability to transport coils from either side or above, even while mounted on rail wagons, ensures operational flexibility that meets the needs of industries requiring secure transport of metal coils and other heavy cargo.
"We recognised the need for a container that could adapt to a variety of transportation scenarios while maintaining the robust, secure design that customers expect from CakeBoxx," said Daine Eisold, CEO at CakeBoxx Technologies. "The FlexBoxx is our answer to that need, combining flexibility, safety, and durability in a single, user-friendly package."
Key Features of the Flexible Loading Enhanced Container System (FlexBoxx) include:
- 20ft variant specs: 20' x 8' x 8'6"
- Adjustable cradle system for coils and other cargo of various sizes
- Stackable five (5) high
- Sliding tarpaulin with built-in braking system for easy, secure operation
- Cargo is locked in place by adjustable heavy-duty brackets
- Single person operation, including tarp opening and closing, and bracket locking
- Tarpaulin can be opened when containers are stacked (in safe operating environment)
- Tarp is fleece-lined for humidity abatement, and completely seals and protects cargo from the weather
- Payload can be removed from the container while container is in a stack or on trailer or chassis
- No requirements for removal of the lid nor for driving a fork truck into the container to remove payload
- Removable coil racks for maximum cargo versatility and payload area reconfiguration
- Full intermodal compatibility for marine, rail, and road transport
- ISO, UIC, and CSC certified
