In this case, the researchers were making hexagonal cuts into flexible, but not normally stretchable plastic and metal sheets to give them the ability to expand uniformly, up to a point. But the design tool could be useful for a variety of synthetic materials, known as auxetic materials that share this same distinctive quality.
Origami-style folding techniques have already helped produce devices such as cardiac stents, which must be maneuvered into the narrowed artery of a heart patient and then expanded to hold the artery open, and solar arrays that unfold after being launched into space. Auxetic materials could be used in similar ways, while also exploiting their additional capabilities.
For instance, bendable sheets can readily form single-curved surfaces, such as cylinders, but auxetic materials also can approximate double-curved surfaces, such as spheres, using only flat pieces.
“Artists and designers have played around with these materials, but ultimately they have been limited by the things they could fashion by hand,” said Keenan Crane, assistant professor of computer science and robotics at Carnegie Mellon. “We wanted to see what you could do if you got computation involved.”
In particular, they worked with Mina Konakovic, a Ph.D. student at EPFL, to use conformal geometry to map the surfaces of these auxetic materials. Just as auxetic sheets expand uniformly in two dimensions, conformal geometry studies maps between spaces where lengths uniformly shrink and expand. A key challenge in connecting the two is addressing the harsh, physical reality that real materials can only expand so much, she said.
Metal and plastic sheets, altered with cuts to lend them auxetic qualities, are convenient materials to explore how to create these complex designs, Crane said. In this study, a series of hexagonal slits were cut into the sheets to create triangular elements that were able to rotate relative to their neighbours, allowing them to expand uniformly.
Based on a 3D digital model, the computational tool can determine the pattern of slits necessary to make the sheet conform to the desired shape. This pattern can then be transferred to a laser cutter to begin the fabrication process.

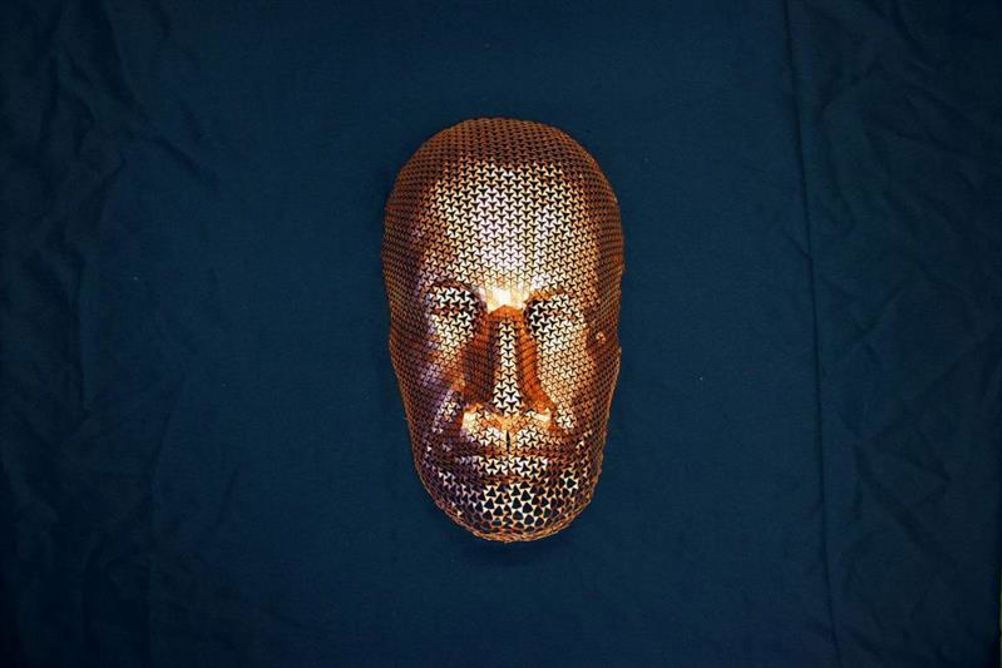

For now, determining just how to bend the laser-cut sheet to achieve the 3D shape is tricky, Crane acknowledged. To form a mask, for instance, the perforated sheet was placed over a cast of the face and pressed into position. He added that the ultimate solution would be to use materials that would automatically pop into position.
