Directional control valve offers fuel savings of up to 30%

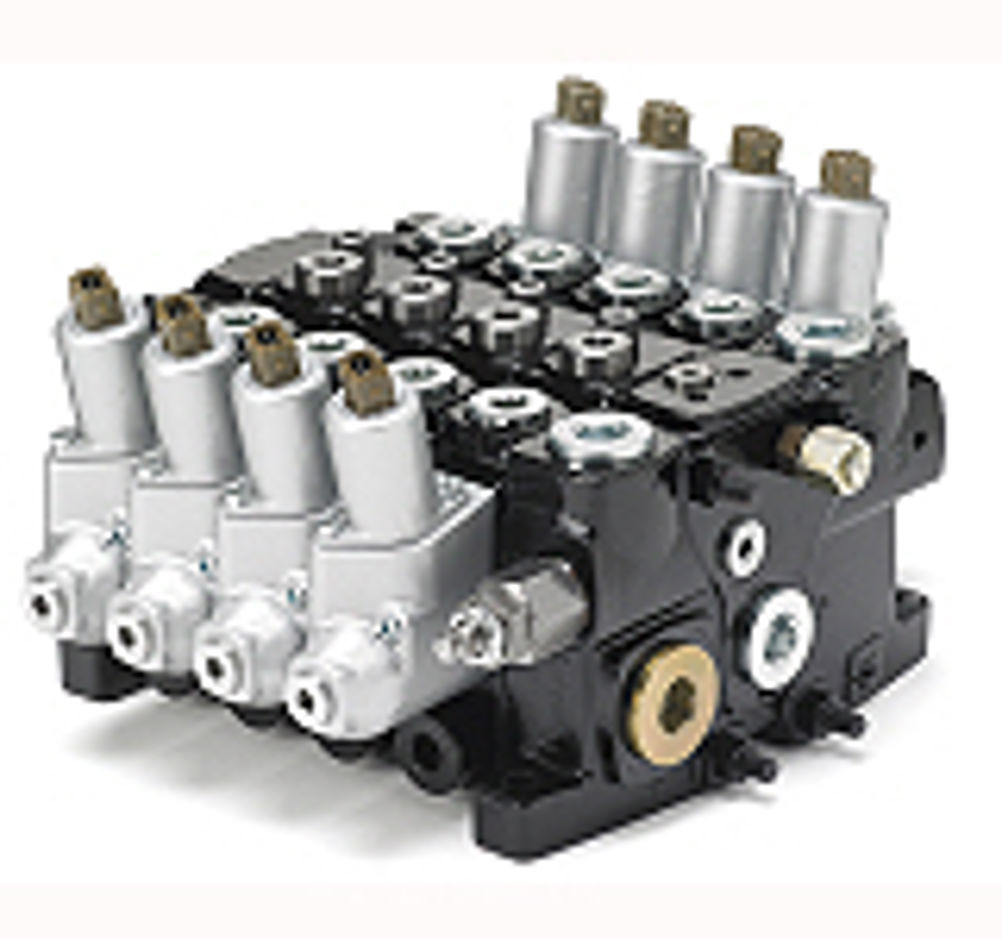

The VP120 uses contemporary flow-sharing technology to address commonly encountered productivity problems associated with pump over-demand conditions. It can be operated manually, hydraulic-remotely, or with solenoids, and is targeted at applications on machines such as compact wheel loaders and mini excavators, cranes and material handling equipment, aerial work platforms, refuse vehicles and other truck applications. Capable of achieving fuel savings of up to 30% versus open centre systems, the VP120 is rated for a maximum pump input of 160 litres per minute (LPM) and a work section output range of 15 to 120LPM. Input pressure rating is 280Bar and the work port is rated to 320Bar. The new valve's pressure compensated load sensing work section has its own compensator so that speed control of multiple functions can be achieved regardless of changes in pressure. According to Parker Hannifin, the valve's modular design provides a high degree of installation flexibility and allows straightforward addition and removal of hardware to suit specific applications. The combination inlet/outlet can be installed on both ends of the VP120's valve body facilitating the routing of pump flow to both ends. Other features include a selectable novice/expert control that enables inexperienced users to use the machine at reduced capacity, and individual port pressure limiting to help increase productivity and reduce energy losses.
