Hongrui Jiang, professor of electrical and computer engineering, said: “What we have shown is an ultrathin stealth ‘sheet’. Right now, what people have is much heavier metal armour or thermal blankets.”
Warm objects like human bodies or tank engines emit heat as infrared light. This stealth sheet is claimed to offer substantial improvements over other heat-masking technologies.
Less than 1mm thick, the sheet absorbs approximately 94% of the infrared light it encounters. This means that warm objects beneath the cloaking material become almost completely invisible to infrared detectors.
The stealth material can also strongly absorb light in the so-called mid- and long-wavelength infrared range, the type of light emitted by objects at approximately human body temperature.
By incorporating electronic heating elements into the stealth sheet, the researchers have also created a high-tech disguise for tricking infrared cameras.

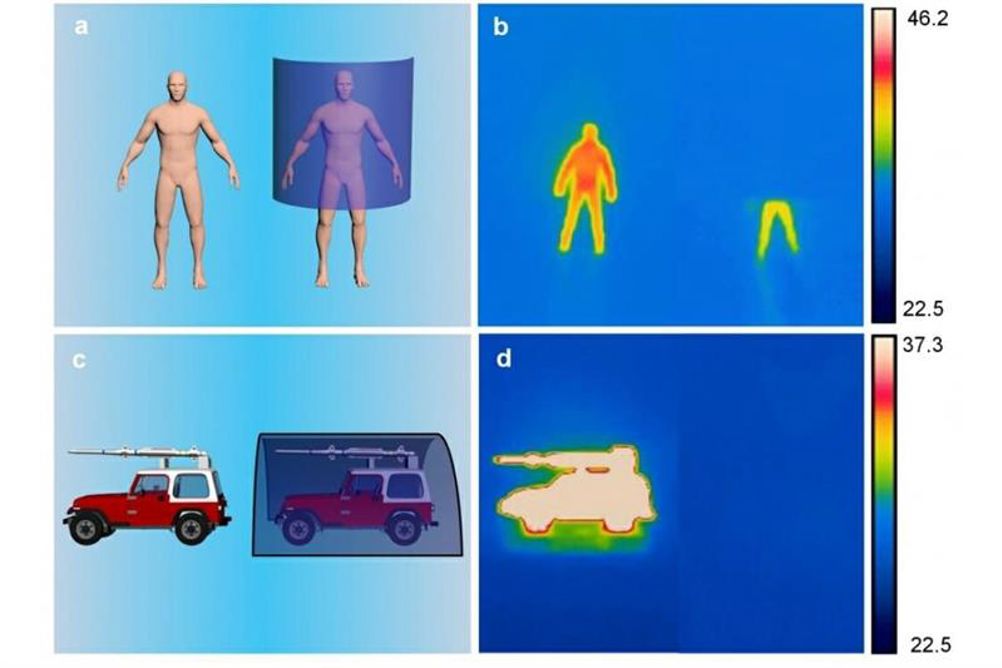

“You can intentionally deceive an infrared detector by presenting a false heat signature,” says Prof Jiang. “It could conceal a tank by presenting what looks like a simple highway guardrail.”
To trap infrared light, Prof Jiang and colleagues turned to a unique material called black silicon, which is commonly incorporated into solar cells. Black silicon absorbs light because it consists of millions of microscopic nanowires all pointing upward like a densely-packed forest. Incoming light reflects back and forth between the vertical spires, bouncing around within the material instead of escaping.
Although black silicon has long been known to absorb visible light, Prof Jiang and colleagues were the first to see the material’s potential for trapping infrared. They boosted its absorptive properties by tweaking the method through which they created their material.
“We didn’t completely reinvent the whole process, but we did extend the process to much taller nanowires,” says Prof Jiang.
They make these nanowires by using tiny particles of silver to help etch down into a thin layer of solid silicon, which results in a thicket of tall needles. Both the nanowires and the silver particles contribute to absorbing infrared light.
The researchers’ black silicon also has a flexible backing interspersed with small air channels. Those air channels prevent the stealth sheet from heating up too quickly as it absorbs infrared light.
The researchers are now working to scale up their prototype for real-world applications.
