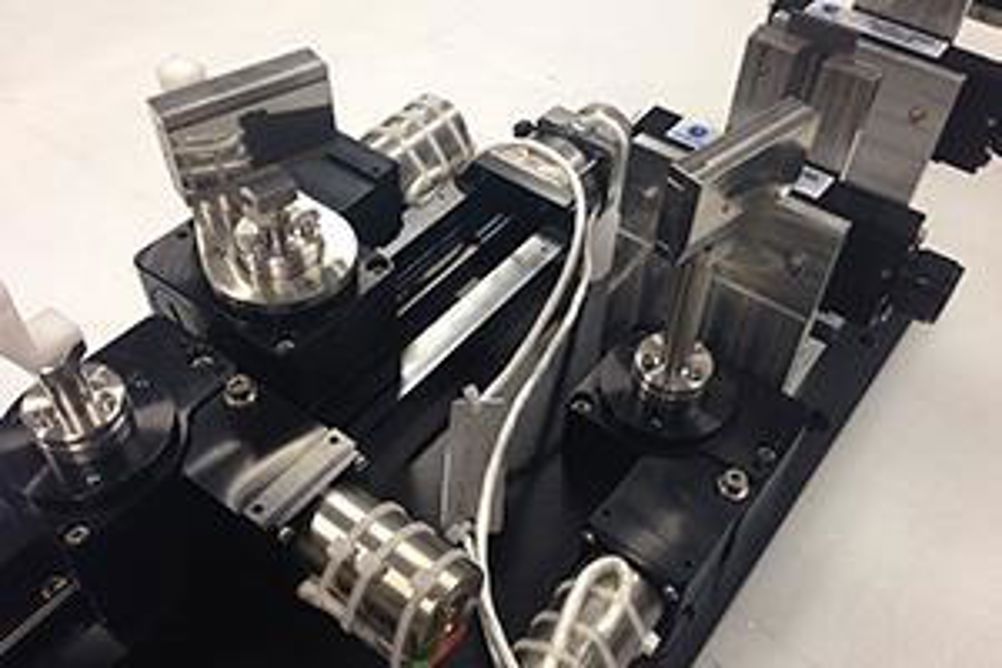

The PC controlled ‘Two Crystal Characterisation Positioning System’ includes three stepper motor driven rotary tables and a 350 mm travel stepper driven linear axis that combine to support optical diffraction mounts and sensors, with two 35 mm travel manually adjustable linear stages used to pre-position static optical equipment.
Our pre-programmed user interface allows operator and supervisor level access to set-up and calibrate the optical system, and to load and run coded pre-defined characterisation routines that run across the PC and the motion controller, producing and storing characterisation data.
The complete system includes a control cabinet, housing the motion controller and micro-stepping motor drives, with all positioning mechanics mounted on an aluminium baseplate.
AWE integrated the mechanics into the vacuum chamber with connections through their vacuum bulkhead to the cabinet via 5 metre cables. The scope of supply included 10-6 vacuum preparation with special lubrication and through-holes or bleeder cross holes to avoid any possibility of cavities forming under vacuum.
All motorised axes used vacuum compatible stepping motors from motor specialist Empire Magnetics Inc., a distribution partner of LG Motion and regularly used and specified for hostile environment applications.
The rotary and linear stages were vacuum modified standard tables from our own LG series – part of a wide range of standard linear, rotary and elevation stages that are available with stepper or servo motors to form complete multi-axis positioning solutions.
The specification for the positioning mechanics called for the assembly was fully tested and CE marked at Basingstoke then transferred to the customer where site acceptance testing was carried out with AWE and LG Motion engineers.
