Affordable integrated motor solutions from HT Servo Ltd

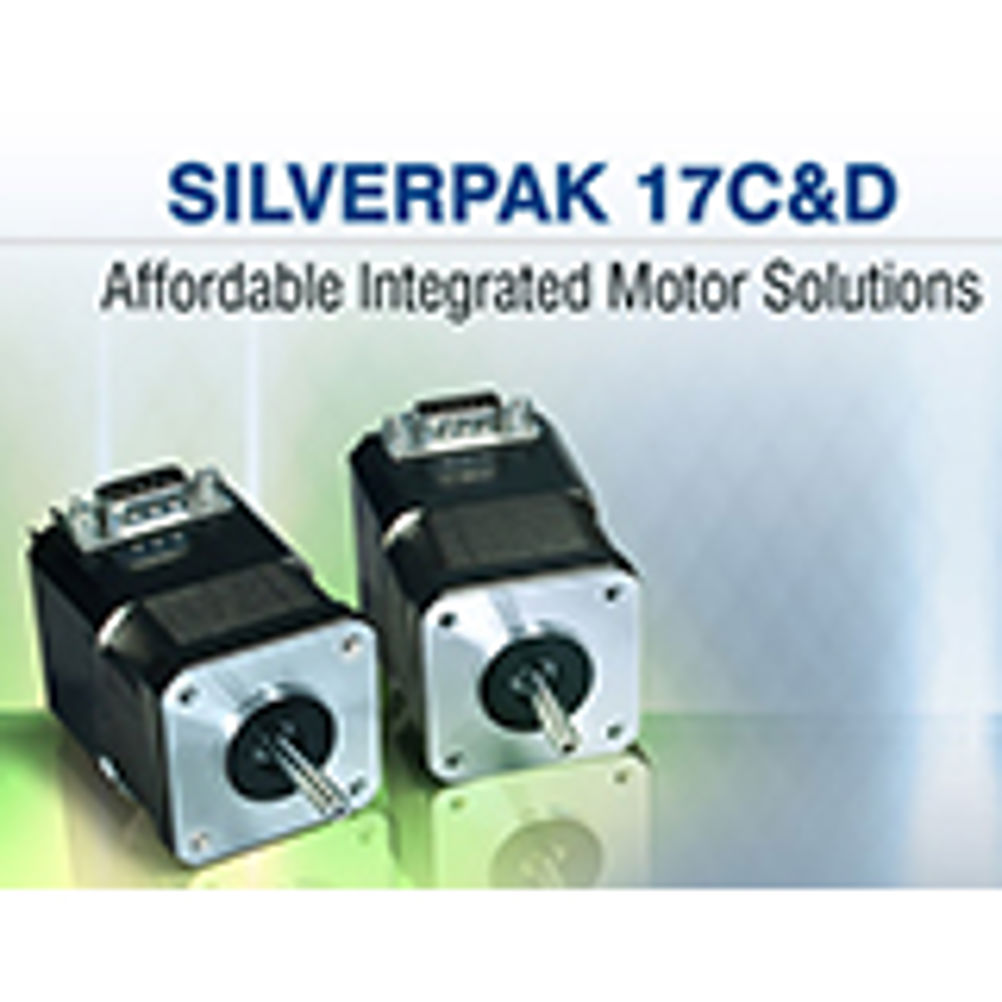

HT Servo, Worthing — June 2014 —The SilverPak 17C, integrated step motor + driver + controller, is available in three body lengths: 2.69", 2.92" and 3.24" and is capable of up to 85 oz-in of holding torque depending on the stack size of the motor. It comes with added features such as higher step resolution and more output current to benefit the user.
The SilverPak 17C also features:
Operating Voltage range from +12 to 40 VDC
Phase Current Range from 0.1 to 2.0 Amps Peak
Step Resolutions from Full stepping to 256x microstepping
Fully programmable ramps and speeds
Stand Alone Operation with no connection to PC
The SilverPak 17D is a high torque, 2 phase, 1.8 degree NEMA 17 step motor with an integrated microstepping driver that delivers high performance in a small package. It is designed to help reduce overall design time and system cost for a wide array of step motor applications needing high torque and smooth motion. It is available in three body lengths: 2.69", 2.92" and 3.24" and is capable of up to 85 oz-in of holding torque depending on the stack size of the motor.
The SilverPak 17D also features:
Operating Voltage range from +12 to 24 VDC
Phase Current Range from 0.25 to 2.0 Amps Peak
Step Resolutions from Full stepping to 8x microstepping
Optically isolated step, direction, and disable/enable inputs
Under-voltage and over-temperature protection
Its ultra sleek design, ease of use, and consistent high quality make it a great choice for a wide variety of step motor applications.
