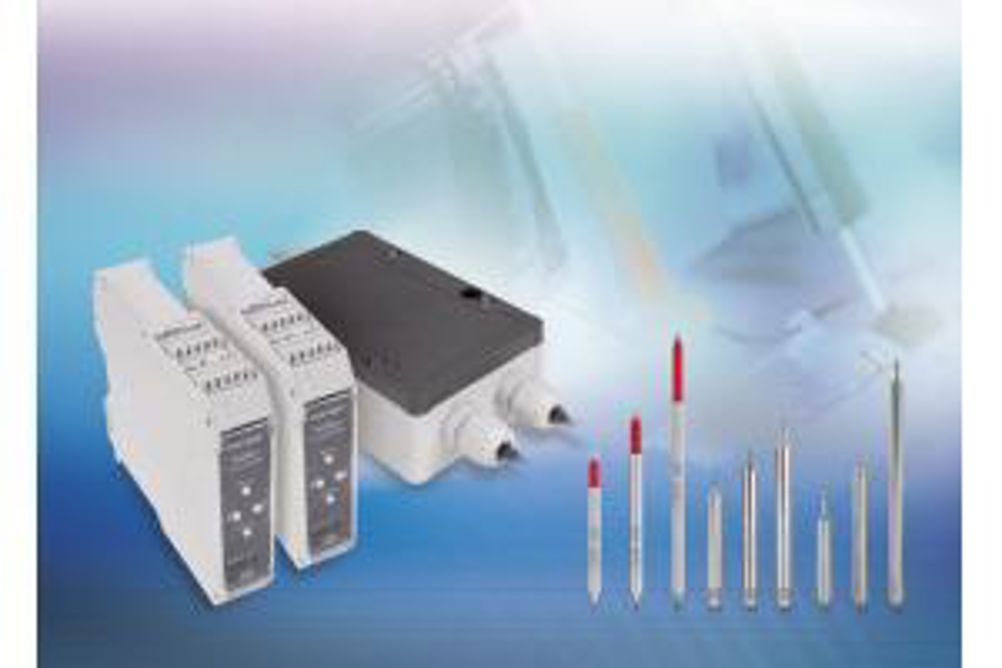

In addition to its induSENSOR MSC7401 single channel miniature controller, the new induSENSOR MSC7602 and induSENSOR MSC7802 controllers both offer two integrated measurement channels. Furthermore, 62 modules of the MSC7602 can be combined on a DIN rail to create 124 available measurement channels. All three controllers are designed to operate with LVDT and LDR measuring gauges and displacement sensors. With measurement ranges up to 50mm, they are primarily used for measuring displacement, distance, position, gauge and thickness in jigs and fixtures. All controllers are equipped with current and voltage outputs and an RS485 interface. Parameter set up is carried out via a keypad and LED display or by using the Sensor Tool software provided. Depending on the intended application, the controllers are available with either a robust aluminium housing (IP67) or with a plastic housing for DIN rail mounting in control cabinets.
The performance of the three controllers is impressive, with resolution up to 13 bits (depending on the connected sensor and chosen frequency) and a high linearity of 0.02% FSO. The complete controller range offers high application versatility for measurement tasks in automation, machine building, positioning tasks, quality inspection, material testing, test benches, hydraulics and automotive technologies.
Low volume inspection and R&D
The induSENSOR MSC7401 controller is a robust, reliable, universal, single channel controller that is ideal for low volume industrial measurement tasks. A wide variety of compatible, inductive displacement sensors and gauges combined with an optimised price-performance ratio opens up numerous fields of application in automation and machine building.
Multi-channel controllers for medium- and high volume applications
The induSENSOR MSC7802 two-channel controller is designed to operate with LVDT and LDR measuring gauges and displacement sensors. The controller is ideal for medium volume inspection and test bench applications. Compared to the MSC7401 single channel controller, the MSC7802 controller offers reduced wiring effort.
The induSENSOR MSC7602 two-channel controller is for high volume OEM machine build and automation tasks. The controller is ideal for multi-channel applications and synchronous operation with up to 124 measurement channels. A bus connector is available to minimise wiring effort. The controller comes in a standard plastic housing for DIN rail mounting in control cabinets.
For more information on the induSENSOR MSC7xxx controllers, please call the Micro-Epsilon sales department on 0151 355 6070 or email info@micro-epsilon.co.uk
