Explore the Precision of Encoders For:
MOTOR CONTROL

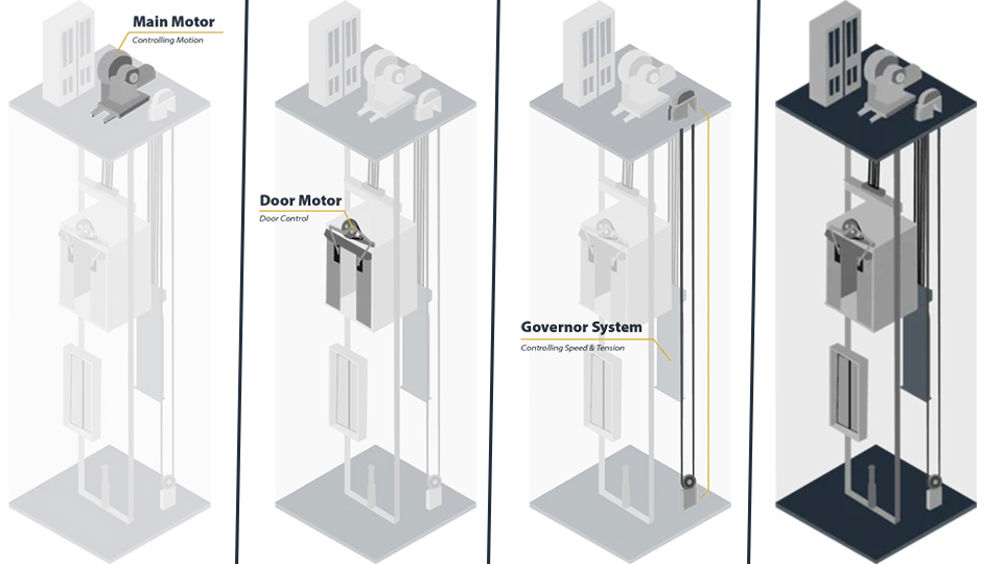

Encoders play a crucial role in elevator motor control by providing accurate feedback on the position, speed, and direction of the elevator car. Here's how encoders are used in elevators for motor control:
• Position Sensing: encoders, installed on the elevator motor or drive system, determine the elevator car's position within the shaft, ensuring precise floor leveling for safe passenger entry and exit.
• Speed Control: monitoring the motor's rotational speed, ensuring smooth acceleration, deceleration, and travel between floors for a comfortable ride experience.
• Direction Control: encoders provide feedback on the motor shaft's rotation, enabling the control system to determine the elevator's direction of travel.
• System Monitoring and Diagnostics: these devices provide real-time data for monitoring the elevator motor's performance, allowing for proactive maintenance and troubleshooting to minimize downtime and optimize system reliability.
DOOR CONTROL
Encoders are essential components in elevator door control systems, ensuring smooth, precise, and safe operation of the doors. Here's how encoders are used for elevator door control:
• Position Feedback: accurate feedback on the position of the elevator doors, allowing the control system to determine their exact opening and closing positions.
• Speed Regulation: these devices allow the control system to regulate the door's opening and closing speed.to ensure the doors operate smoothly and efficiently, minimizing the risk of sudden movements or jolts.
• Acceleration and Deceleration Control: like speed regulation, encoders help control the acceleration and deceleration of the elevator doors. This ensures that the doors start and stop gradually, reducing wear and tear on the door mechanism.
• Safety Features: encoders can detect obstructions or resistance in the door's path and trigger the doors to stop or reverse direction to prevent accidents. Encoders also ensure that the doors remain securely closed during elevator movement.
• Position Correction: in the event of misalignment or uneven closing of the elevator doors, encoders provide feedback to the control system, enabling it to make rapid adjustments to ensure proper door alignment. This helps prevent issues such as door jams or gaps.
• Diagnostic Capabilities: encoders provide real-time data on the performance of the elevator door system, allowing for proactive maintenance and troubleshooting, minimizing downtime, and optimizing system reliability.
SHAFT POSITIONING SYSTEM AND CAR POSITIONING
In elevator systems, encoders are commonly used for shaft positioning to ensure precise alignment of the elevator car with each floor. Here's how encoders are utilized for shaft positioning:
• Encoder Mounting: typically installed on the elevator motor or drive system to measure the rotation of the motor shaft. Alternatively, they can be mounted directly on the elevator car to measure its movement within the shaft.
• Position Feedback: providing feedback on the rotational position of the elevator motor shaft or the linear position of the elevator car within the shaft. It's crucial for accurately determining the elevator's location relative to each floor.
• Floor-Leveling Control: when the elevator approaches a floor, the control system uses the encoder feedback to precisely control the motor's speed and direction, ensuring that the elevator car stops at the correct floor level.
• Alignment Correction: if the encoder feedback does not agree with other data sensors, the control system detects a deviation from the desired position and can make rapid adjustments to ensure that the elevator car aligns perfectly with the floor before the doors open.
• Overtravel Protection: by continuously monitoring the elevator's position, encoders enable the control system to activate safety mechanisms, such as emergency brakes, if the elevator approaches or exceeds the limits of its travel range.
• System Calibration: during installation and maintenance, encoders are essential for calibrating the elevator's position and ensuring accurate floor-leveling control.
