JVL has substantially proven its QuickStep/ServoStep technology in its larger 23 and 34 NEMA frame integrated motors. With microstepping motor, drive, feedback encoder and motion controller in a single servo controlled package, and with EtherCAT amongst six leading industrial Ethernet protocol options available, this new highly compact positioning solution opens the way for tightly synchronised multi-axis motion control as part of smaller distributed machine architectures.

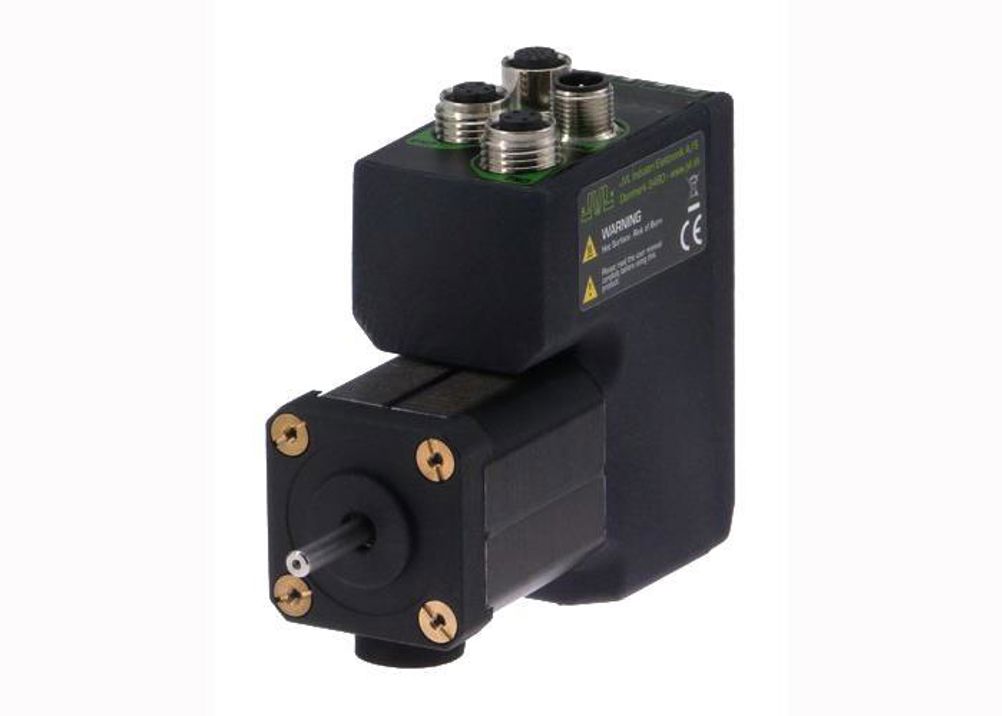

The MIS17 series has a mounting flange size of just 42 x 42 mm yet offers output torque of up to 0.8 Nm. Advanced features and options include 409600 step/rev multi-turn absolute encoder plus a very wide choice of control modes and interfacing options, in addition to its Ethernet capability.
JVL’s QuickStep control technology resolves the lost motion and stalling problems associated with open-loop stepper motors and furthermore develops more useful peak torque as well as much higher position and velocity precision. The new MIS17 series integrated motor is available in three nominal winding lengths for torque performance ratings of 0.15 Nm, 0.26 Nm and 0.8 Nm with speeds to 3000 rpm. The built-in absolute multi-turn encoder requires no datum routine on start-up and contributes to the exceptional levels of control smoothness and low audible noise as part of the QuickStep’s control system.
As well as simple step+direction and analogue voltage for position and velocity control, options for multi-axis control via CANbus and SSI are available along with built-in RS422 and RS485 ports. For standalone applications JVL’s ‘MacTalk’ PLC controller provides a graphical programming environment for a wide range of motion control and machine IO interaction functions. Wi-Fi, Bluetooth and Wireless Ethernet are also available options. In addition to EtherCAT, other industrial Ethernet alternatives cover Profinet, Ethernet/IP, Powerlink, MODBUS TCP/IP and SERCOS III – all through an integral dual port Ethernet switch for simple wiring and cost reduction. For integration into higher level programming environments, the controller also offers optional ActiveX/OCX drivers.
