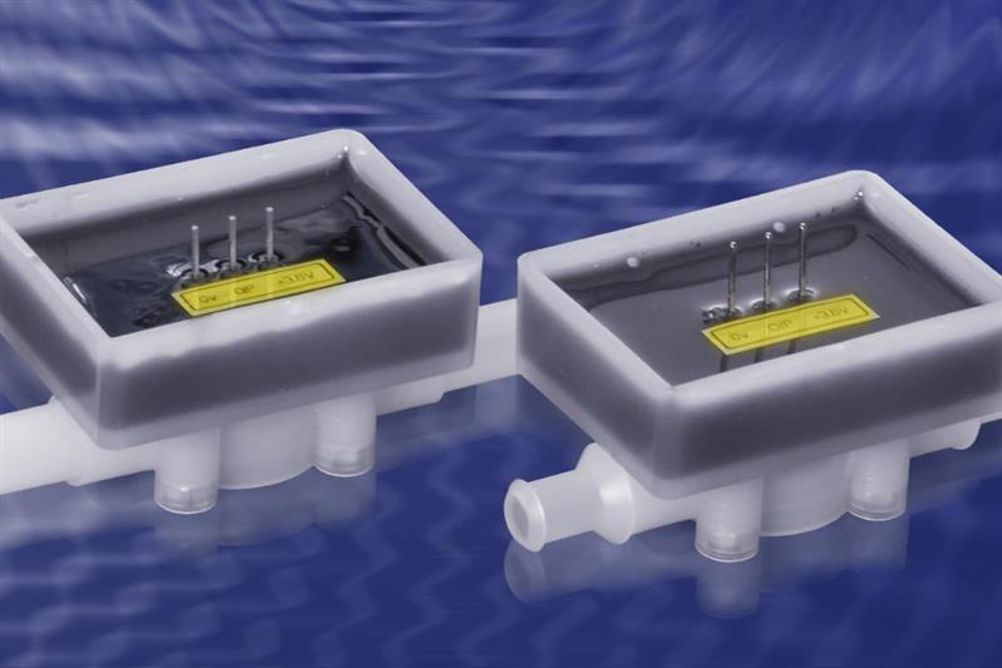

Low power flowmeter for battery operated equipment

Titan Enterprises low power 800 series turbine flow meter is designed for use with battery powered or portable equipment. Requiring minimal power input, this competitively priced, low power 800 series flow meter maintains high performance over 6 flow ranges from 0.05 to 15 litres per minute. Totally non-metallic wetted components, including a moulded PVDF body and Viton 'O' seals, makes the low power 800 series flowmeter the ideal choice for the metering of even aggressive chemicals. The standard inlet tubes are barbed to accept a hose size of 8mm although for OEM use - alternatives are available.

The Titan low power flow meters (4uA @ 3.3V) are designed to give high performance and competitive pricing with 6 flow ranges from 0.05 to 15 litres per minute. The low power flow meters totally non-metallic wetted components makes this the ideal choice for flow metering of aggressive chemicals including ultra-pure water. The standard inlet tubes are barbed to accept a hose size of 8mm although for OEM use alternatives are available. The bearings are made of sapphire for long life and reliability, the body is moulded PVDF as standard and the ‘O’ ring seal is typically Viton™..

Low Power Flow Meters – 800 Series: Features
At the heart of the low power flow meters are precision turbines that rotates freely on robust sapphire bearings and contains chemically resistant ceramic magnets that are detected through the chamber wall by a low power detector. The output is a stream of pulses that are readily interfaced with most electronic display or recording devices. This combination of materials and technology ensures a long life product with reliable operation throughout.

Low cost
Low Power Flow Meters
PVDF
1- 2% FSD
Sapphire bearings
Low power sensor
6 Flow ranges
10 Bar rating
VitonTM seal as standard
8mm hose tails
0.1% Repeatability
3.3 V 4uA
-25°C Min to 80°C Max
50gms

The Low Power Flow Meters – 800 Series are Ideal For
Drink dispensing
Laboratory tests
Cooling equipment
Active flow alarms
Semiconductor plant
OEM applications

Low Power Flow Meters – 800 Series: Standard Materials of Construction
Body and cap – PVDF
‘O’ Ring seal – Viton™
Magnets – PVDF coated ceramic
Bearings – Sapphire

For further information, please visit: www.flowmeters.co.uk/low-power-flow-meters-800-ser...
