Micro-Epsilon launches the smallest VGA-resolution infrared thermal imaging camera available today

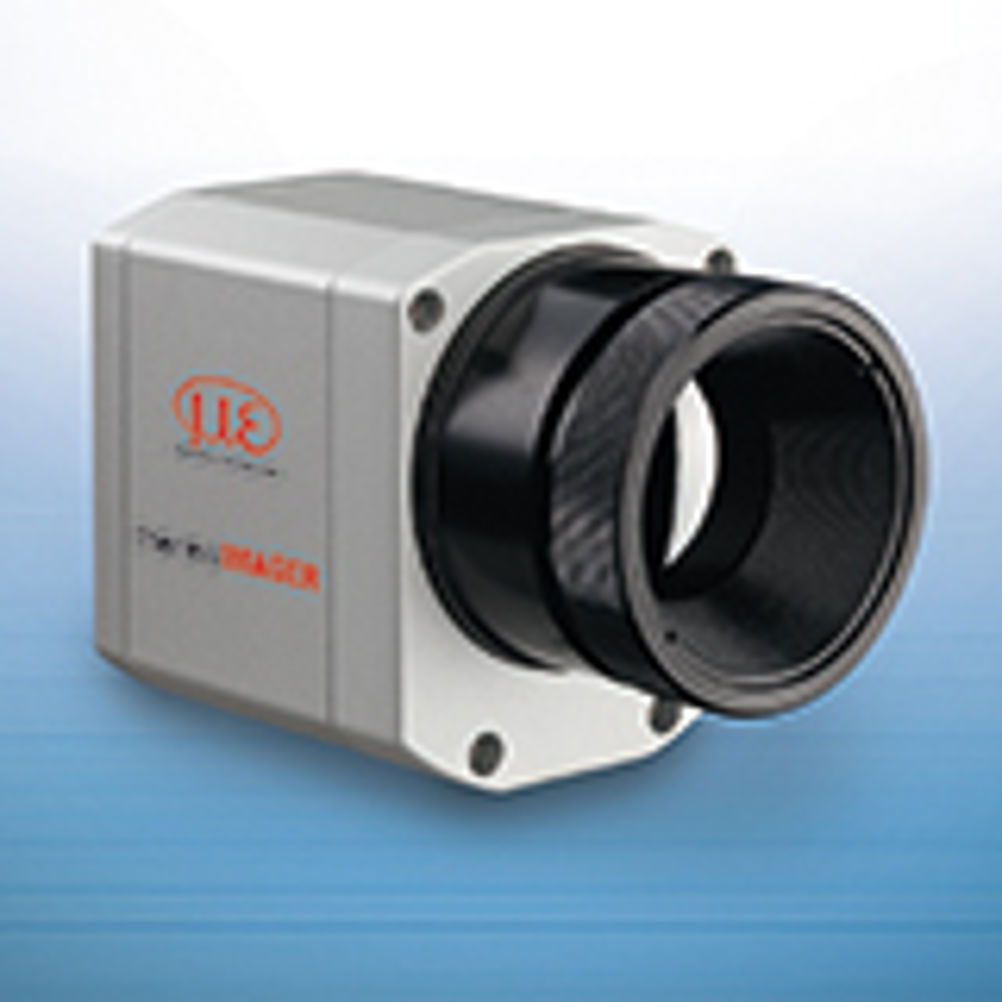

Micro-Epsilon's latest innovation in thermal imaging, the thermoIMAGER TIM 640, is an infrared thermal imaging camera that is able to record radiometric video images at an optical resolution of 640x480 pixels and is the smallest VGA-resolution infrared camera available today. With dimensions of 45x56x90mm and weighing just 320g, compared to other similar-size cameras, the TIM 640 is the only camera in the marketplace that enables the recording of radiometric video images at 32Hz and a VGA resolution of 640x480 pixels. With a thermal sensitivity of 75mK, this camera can detect very small temperature differences. At ambient temperatures of between 0 and 50°C, the camera can measure object temperatures ranging from -20°C to +900°C. For easy process integration, the camera is supplied with the full TIM Connect software as standard. The software provides quick and easy set up together with a range of software tools that enable the cameras to be used in R&D tasks as well as process control. A USB 2.0 interface allows video recording at 32Hz. This is highly beneficial for short term thermal measurement activities, which can then be analysed in slow motion playback if required. Individual snapshots can be taken from these recordings. Measurement points are freely selectable and can be analysed via user-defined areas of interest. Alarms can also be set up and displayed, as well as maximum, minimum and average temperatures. The TIM 640 is supplied with an integral process interface for input and output of analogue and digital signals (alarms, temperature values, etc.). Open connectivity drivers are also provided for software integration via DLL, ComPort and LabVIEW, simplifying connectivity to fieldbus. Read more: www.micro-epsilon.co.uk Contact us for a quote or for more information via: Email: info@micro-epsilon.co.uk Telephone: 0151 355 6070
