Miniature shuttle valve is ideal option for hydraulic isolation
A miniature, cartridge style shuttle valve which is designed to install easily into a drilled hole and eliminates the need for threads, o-rings or in-house designs, is the latest addition to the <b>LEE PRODUCTS</b> range of miniature components. The Lee IMH shuttle valve is an economical and reliable alternative solution to the problem of achieving hydraulic isolation in manifolds and has numerous potential applications.

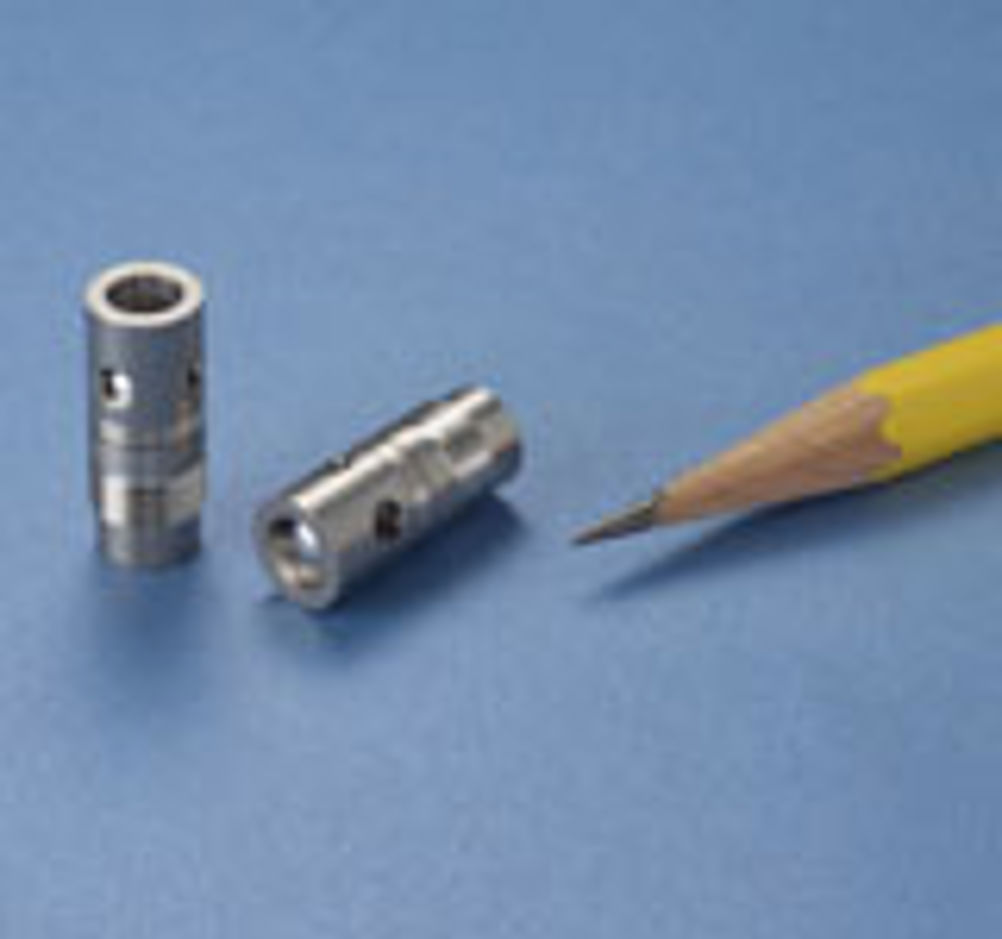

This new valve features a compact, non-detented, selective design and is available in two sizes, 5.5mm diameter by 12.2mm long and 8mm diameter by 16mm long. They are constructed entirely from stainless steel and are 100% performance tested for flow and leakage to ensure consistent, long-term performance at maximum working pressures up to 28 MPa (4,060 psi).
Installation is achieved simply by inserting the shuttle valve into a drilled hole, then driving the expansion pin into the valve body to seal and lock the valve in-place.
Lee IMH shuttle valves are ideally suited as a signal device for auxiliary functions, such as hydraulically released, spring applied brakes and load sensing, or wherever effective hydraulic isolation is required across a wide range of industrial and automotive applications.
Further details and product literature is available from: Lee Products Ltd
