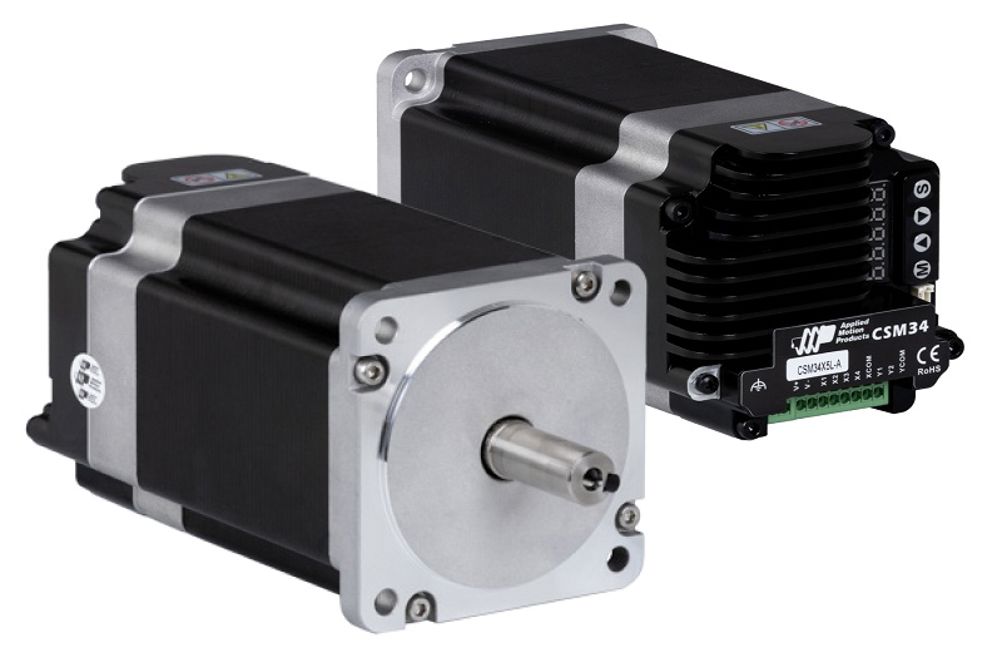

The CSM34 features a push-button control panel, a 5-segment status display, and a spring-loaded terminal strip. Operators simply configure up to two motor speed settings and acceleration/deceleration values - a motion simulation/jog facility is also provided as a useful set-up aid. The set parameters are then simply triggered via built-in optically isolated, differential inputs at 5-24V DC. The terminal strip also facilitates straightforward connection for alarm and in-position outputs at 30V DC/100mA. A cancel alarm input is also provided, and the status display additionally indicates a number of error codes. The CSM34 requires a separate 24…75V DC power supply with respective torque performance (rated/peak) from around 5 to 7.5 Nm and a usable speed range from 0 to 2000 rpm - suitable power supplies are available from Mclennan. Datasheets covering the drive’s specifications and performance with torque curves for both versions are available from the Mclennan website as well as installation manuals and 2D/3D drawings.
Mclennan is a long-term, exclusive European distribution partner for AMP Inc. and other partnered motion control and automation equipment manufacturers. Mclennan works in partnership with its customers to bring competitive and effective solutions through a comprehensive in-house design and build capability. Technologies available include stepper, servo, and other motor-based automation solutions as well as mechanics such as gearboxes and positioning stages etc. - supplied as single components or as complete motion control systems with software, training, and on-site installation as part of a complete project fulfilment service. For more information on the new CSM34 and other motion control solutions, contact Mclennan at sales@mclennan.co.uk , visit www.mclennan.co.uk or call +44 (0) 1252 531444
