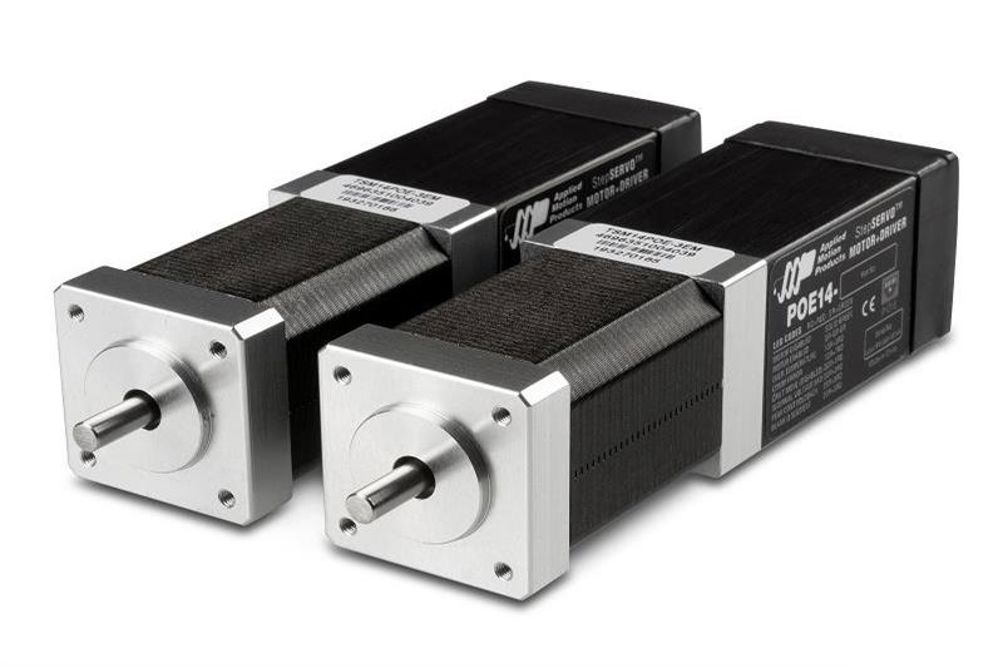

With PoE linked drive/controller power and Ethernet communications over a single cable the unique TSM14POE series, based on AMP’s well proven StepSERVO™ technology, will bring a new level of application capability for miniature decentralised automation tasks with time and cost savings through simplified wiring as well as compactness and location flexibility. Available from Mclennan - AMP’s European distribution partner – the NEMA size 14 integrated motor could be applied to existing PoE-linked devices such as IP Camera systems to add positioning capability, or to miniature automated devices such as robotics, end effectors, small actuators and medical instruments.
AMP’s StepSERVO™ technology provides greater torque, higher acceleration rates, better efficiency, decreased motor heating, and less audible noise than traditional, open-loop step motor systems. For the new TSM14POE series the drive stage is combined with an integral 4096 ppr magnetic encoder providing high accuracy position and speed feedback through a choice of industrial Ethernet protocols including Ethernet TCP/IP, EtherNet/IP and Modbus TCP. Motion control via AMP’s Q Programming language enables axis positioning plus motion profiles with maths and conditional functions available along with stored program execution for machine interaction over Ethernet.
The TSM14POE is compatible with IEEE 802.3at Type 2 specifications for PoE+ and with switches and injectors that support the standard. A choice of models offer X-coded M12 or modular RJ-45 connectors for application flexibility. Both have square nominal housing dimensions of 35 mm x 35 mm with the slightly longer M12 connector option being approximately 109 mm, and 99 mm for the RJ-45 option. Speed and torque characteristics are application dependent with nominal holding torque in the region of 0.4 Nm. Additionally, AMP and Mclennan offer the TSM14POE series complete with integrated low-backlash planetary gearheads in a wide range of ratios where increased torque performance is required.
