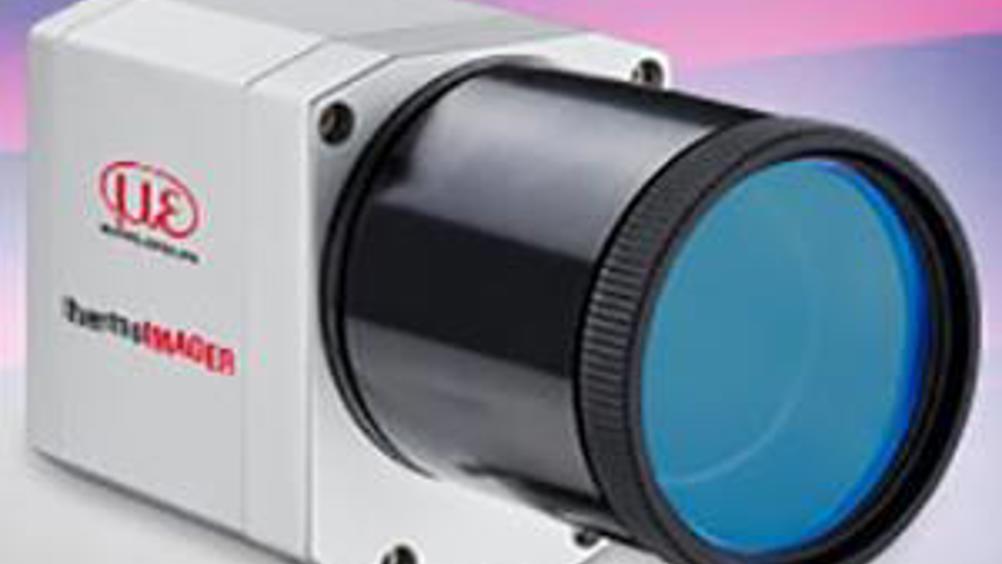

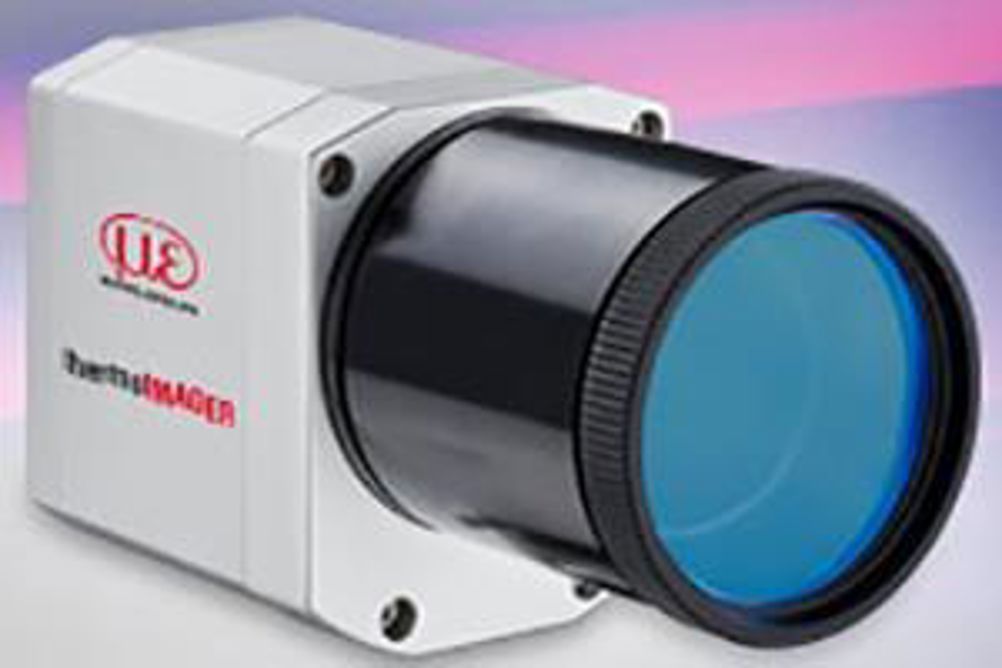

The new TIM M1 1µm thermal imaging camera with notch filter is ideal for laser weld quality inspection. With many more advanced features than a spot pyrometer, yet at the extremely competitive price of £4704,the TIM M1 has revolutionised the way the industry measures the temperature of hot metals.
Applications include the use in R&D, Machine closed loop control and in-process production
Features include:
- 1µm wavelength allows more accurate and stable temperature measurement of metals
- 1ms response of centre pixel for high speed hot metal detection
- Software functions include: in process control, image recording and alarm outputs and full SDK included
- Continuous temperature ranges from 450°C to 1800°C without sub-ranges
- Notch filter blocks wavelengths of 1064nm
- 764 x 480 pixels, 39° x 25° @ 32Hz
- Extremely fast 1kHz, 72 x 56 pixels,
- Temperature range from 500 to 1800°C
- High speed recording enables monitoring flash energy distribution across weld profile
For more information click here :
http://www.micro-epsilon.co.uk/temperature-sensors...
For a free onsite consultation contact Micro-Epsilon via:
Email: :info@micro-epsilon.co.uk
Telephone: 0151 355 6070
Visit: www.micro-epsilon.co.uk
