OverTEC 5FR – Techsil’s new low pressure injection moulding technology
OverTEC 5FR is a low pressure moulding system, positioned between high pressure short cycle time processes for mass production and gravity fed long cycle time processes for small runs and prototypes. OverTEC 5FR seals and protects electrical and electronic components in a cost effective way through increased production and low cost tooling.

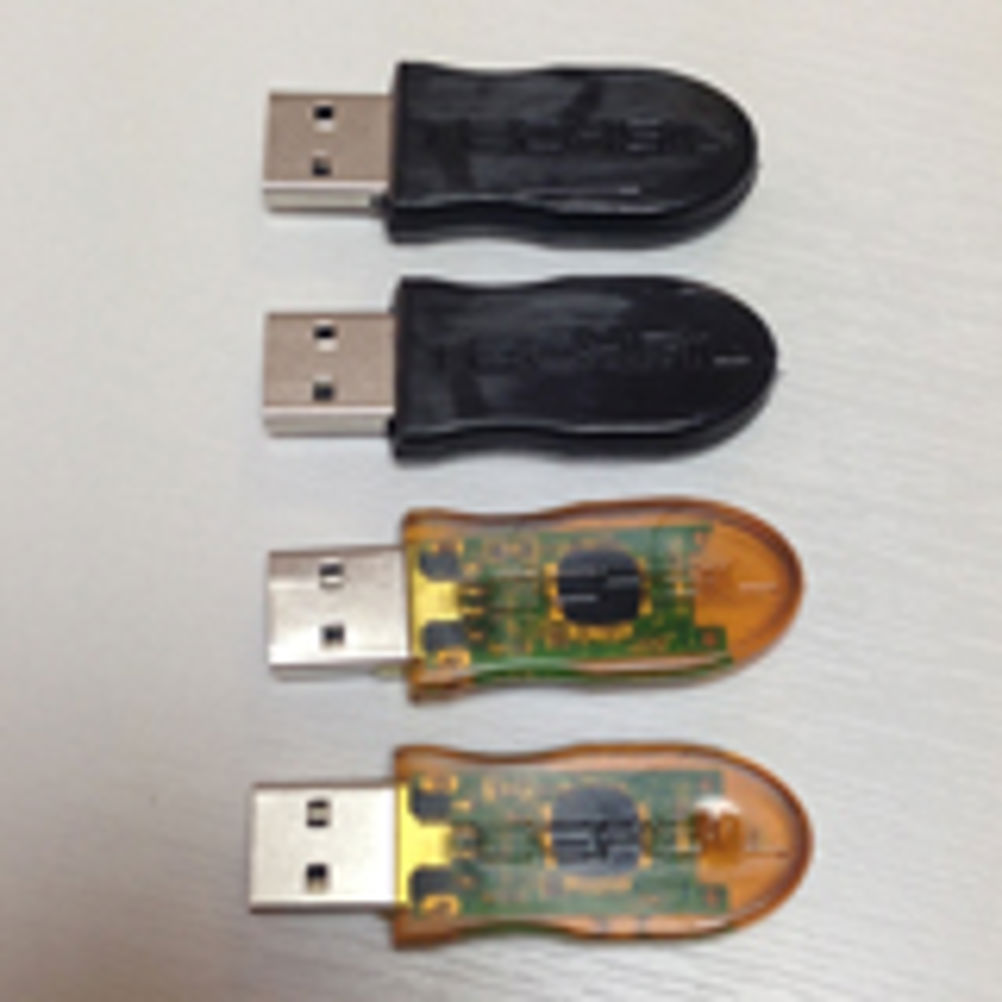

Typically OverTEC 5FR can be used to: overmould PCBs, make electric cable glands, provide strain relief on cables, protect sensors and to make electronic connectors for IP protection.
In addition to supplying the OverTEC 5FR material, Techsil can also provide customers with design advice for tooling and offer a cost effective CAD design and manufacture service for whatever tooling is required. Alternatively OverTEC 5FR can be used with the customer's existing tooling.
Material Technology of OverTEC 5FR
• High Performance Polyamide
• ULV0 Flammability rating
• Water Resistant
• High & Low temperature resistance
• Very high molten tack
• Good adhesion to many substrates including PCB, PVC,
• Available in stick and bulk forms
• Available in Black or Amber colours
• Cycle time of less than 1 minute
• Parts can be handle direct from tool
Requirements for using OverTEC 5FR involve low capital expenditure
• Mould Tool
• Hand Gun (Bulk options also)
• 240v or 110v power source
• OverTEC 5FR sticks (prills for bulk)
For more information contact Steve Morrow, Business Development Manager, steve.morrow@techsil.co.uk
Watch application video
