Redesigned Rivet Nut Stud to exceed setting tolerance

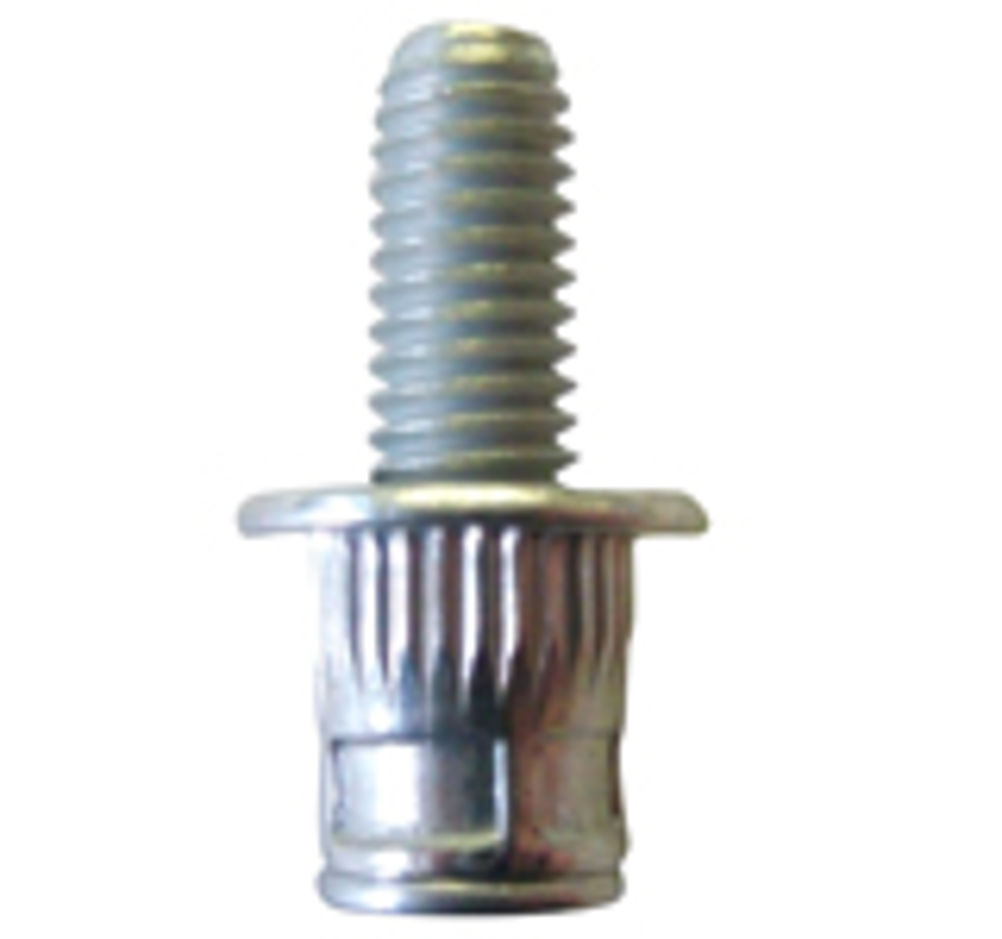

OEM applications are characteristically different and challenging. Often, design modifications are required to a rivet, rivet nut or a rivet nut stud in order for our products to fulfill the requirements of the application and the Customer. A recent success story came about when a redesign of a standard stock rivet nut stud helped one of our automotive customers. The customer in question approached us to design a rivet nut stud for very specific and tight application parameters to be used in a steering column. The design team at Gesipa Keighley worked on a standard M6 rivet nut stud design modifying it to give a high clamp with minimal set length in the steering column. This was done by reducing the counter bore just enough to grip the required material without lowering the torque and using different materials to ensure correct setting for the application. Poke-yoke troubleshooting was conducted at our facility in Keighley to check the performance of this redesigned rivet nut stud during assembly. During this process, the vision inspection system picks the product up and rotates it in front of the camera checking every rivet nut stud for Short assembly, Rivet Nut length, Stud length, Crimp root diameter, Crimp crest diameter, Malformed crimp and Rivet Nut head diameter. Gesipa started manufacturing a standard range of rivet nut stud in its UK facility in Keighley, West Yorkshire in 2010 and now produces sizes M4 to M12 in a variety of materials and stud lengths to match customer requirements. Currently being used in Automotive, Refrigeration plant, HVAC, securing panels and hoses and electrical components etc; rivet nut studs have huge potential in the aluminium extrusion market and various other applications using thin metals. For further Information on our rivet nut studs please visit GESIPA® Rivet Nut studs Contact Information: Gesipa Blind Riveting Systems Ltd Dalton Lane, Keighley, West Yorkshire, BD21 4JU T: +44 (0) 1535 212200, F: +44 (0) 1535 212232 info@gesipa.co.uk
