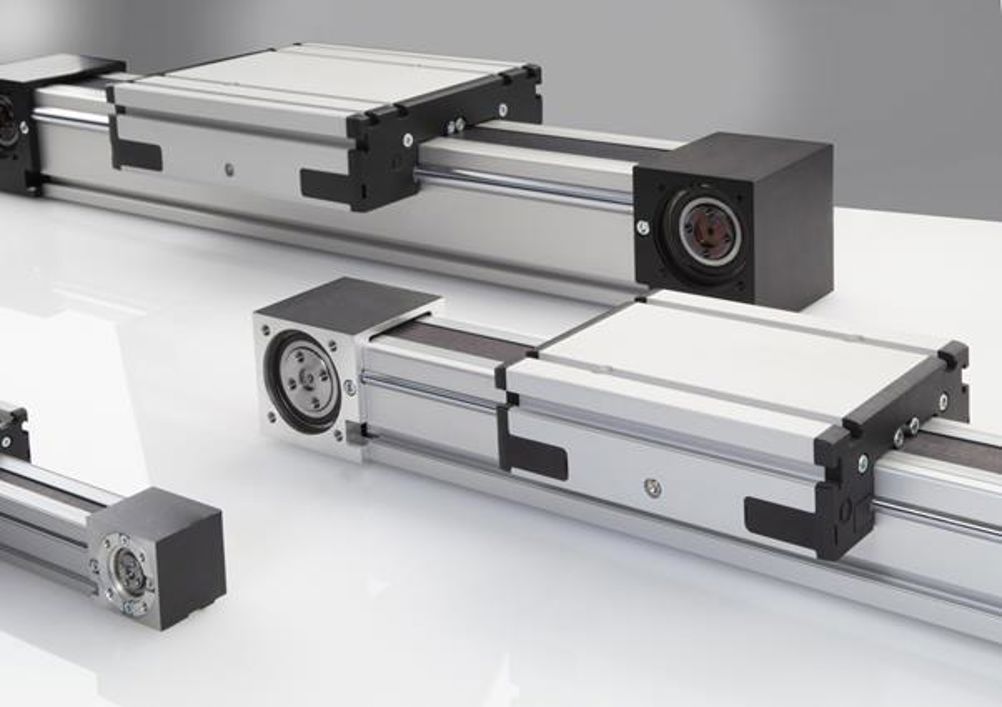

Initially released in sizes 40, 80 and 120, the range will soon be extended to include size 60 and will therefore be available in sizes 40, 60, 80 and 120 – either with a timing-belt drive (Z) or without a drive as anti-vibration torque support (R).
The size 40 timing belt driven version can withstand loads of up to 1100 N, the size 60 up to 2800 N, the size 80 can up to 4367 N and the 120 version can withstand loads of up to 9400 N. All units can reach travel speeds of up to 10 m/s, with permissible accelerations of up to 20 ms².
As with other timing-belt-driven linear units, the RK MonoLine Z also features a variable mounting system for almost all motors available on the market. The motor position no longer needs to be specified when placing an order and can be changed at a later stage. The new actuators are fitted with a timing-belt guidance system as standard. The optional clamping and slot stone bars reduce the amount of engineering required and make customisation easier. The profile slots enable maximum flexibility for the fixation of customer-specific accessories, such as drag chains and tube holders, as well as limit or proximity switches for limit switching. The payload is fixed securely using the slot stones with tapped holes available as accessories. For users this means minimal effort required in construction, reduced assembly costs and quicker assembly. Special tapered lubrication nipples on the side of the carriage facilitate lubrication of the linear units in any carriage position. It is not necessary to move the units into a particular maintenance position or to disassemble any fittings. Central lubrication speeds up maintenance and also makes it safer and simpler. The new linear actuators impress due to their smooth running and high precision when subjected to medium dynamic loads.
