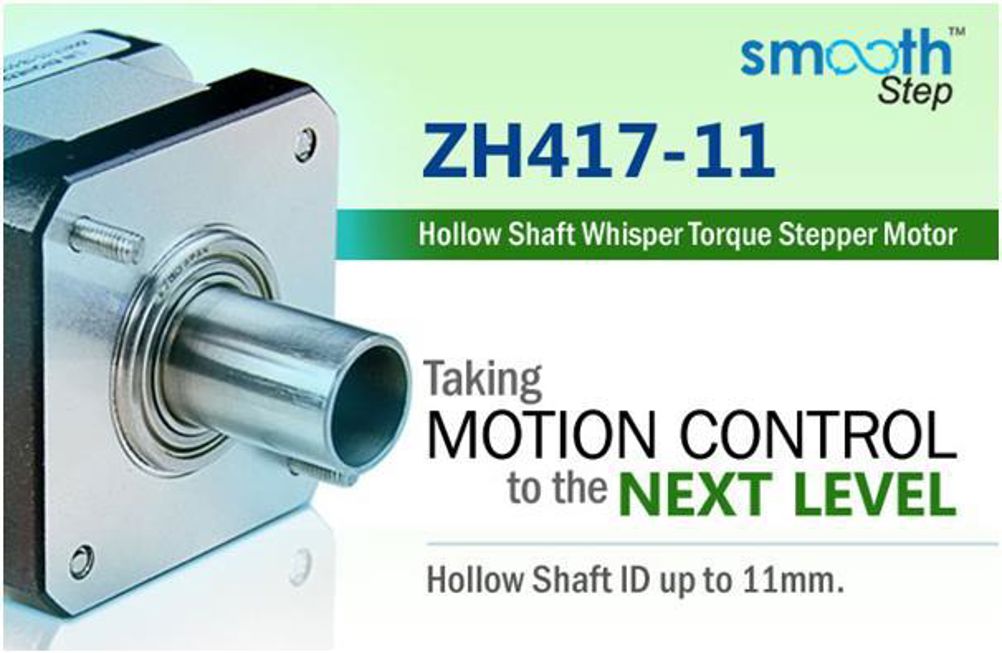

Its unique design allows your application to run extremely smooth with the added benefit of maintaining high accuracy and torque.
How is the ZH417-11 able to incorporate up to an 11mm ID Hollow Shaft and still maintain its high accuracy and torque? This new patent pending design has no magnet on the rotor, but instead uses a ring magnet around the stator coils that is sandwiched between the stator stack. Since there is no permanent magnet in the rotor and only the outer edges of the rotor are used, large shaft dimensions can be implemented without lowering motor performance. These patent pending design enhancements give the Whisper Torque ZH417-11 a much higher performance and efficiency as well as the flexibility of a large hollow shaft ID of up to 11mm.
With this flexibility the SmoothStep ZH417-11 WhisperTorque stepper motor is the optimal choice for applications needing smooth motion and quiet operation without sacrificing performance.
