The unmistakable advantage of the multi-axis, parallel kinematic hexapods is precise positioning freely in all directions. With a central movement distance of 135 mm, this allows the multi-axis system to be used flexibly for a wide variety of applications, for example in measurement and testing technology.
The new 150 series hexapod with its high load-bearing capacity coupled with large movement distances and high positioning speeds of 50 mm/s leaves nothing to be desired in the application specification. The high-precision positioning system impresses with its excellent mechanics: Extremely stiff drive legs with brushless, slotless AC servo motors not only ensure ultimate performance and a long service life, but also maximum precision in the submicrometre range. The AC servo motors are connected directly to the ball bearing spindle, which guarantees high drive rigidity. According to the manufacturer, the HEX150 RC is currently the most precise hexapod on the market.
Simulation in free space
Due to the complex kinematics, the control effort of a hexapod should not be underestimated. Aerotech counteracts this with the innovative control platform A3200, resulting from years of experience with demanding kinematic applications. The integrated, intuitive simulation software “HexGen Hexapod” enables simple programming and control of the hexapods in any user-defined coordinate system. The user can visualize and simulate the available work space in order to carry out collision observations. In addition, the user can also select pre-configured models directly from a stored library with standard designs.
In order to be able to simulate the entire work process, the AS3200 accesses the open platform Coppelia Robotics V-REP via a simulation interface. Complete automation processes can be simulated on this platform, and the required robot actuators, linear or rotary tables and tools can be assembled in a 3D environment.
((Figures))

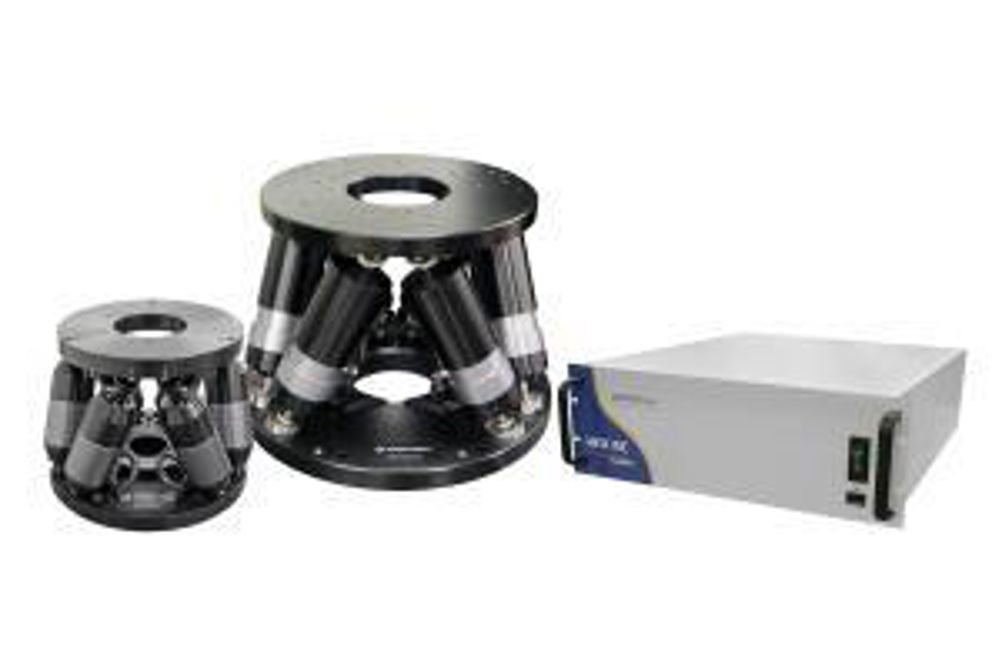

Figure: Hexapods with AS3200

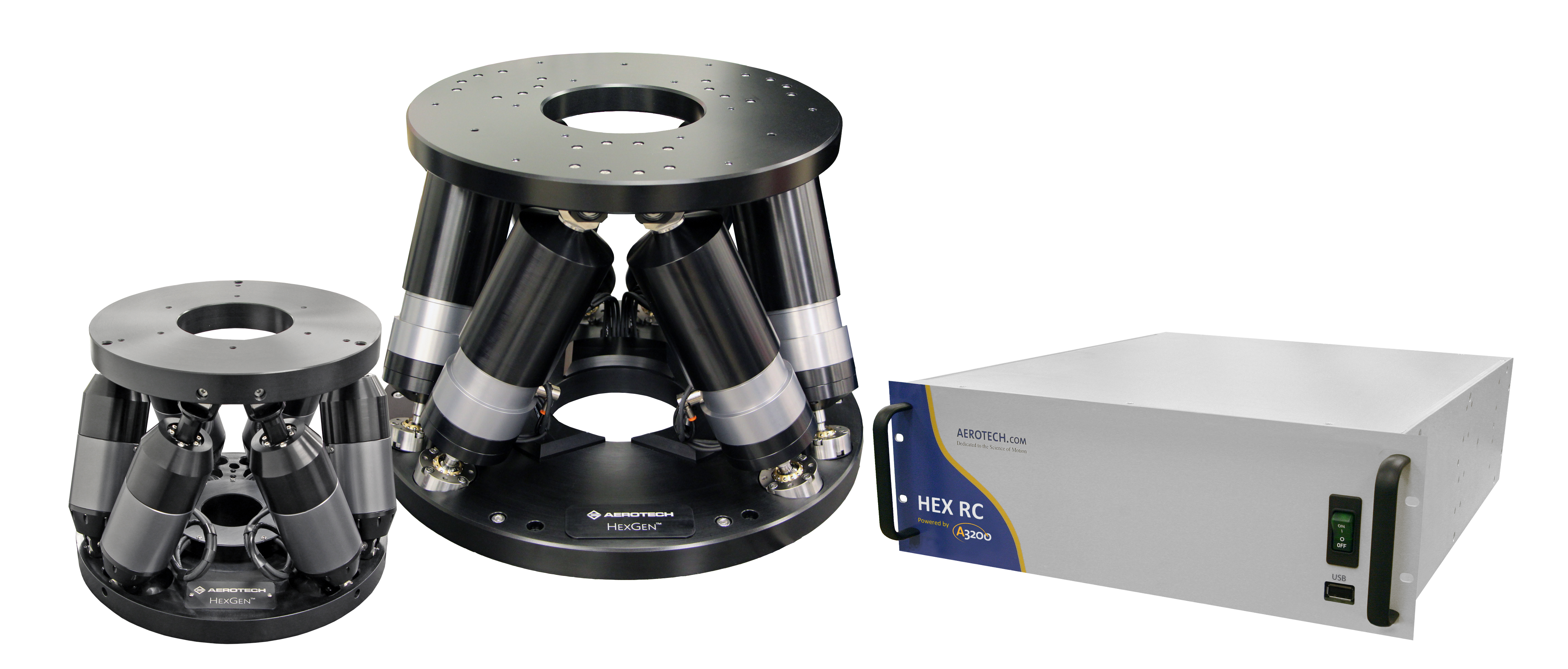

BU: Little brother: The new Hexapod HEX150 RC (left) from the motion control specialist Aerotech, base plate diameter 150 mm / top part diameter 35 mm, with AS3200 control in a 4U rack housing and integrated control electronics (6 amplifiers, PC “plug-and-play”
