Bloodhound, Britain’s next Land Speed Record challenger finally makes its first public test runs

If there was trepidation, however, it didn’t show on the faces of the project’s team and, sure enough, the clouds burned off with an hour to spare leaving a dry runway for the car to sprint down. As the weather improved the crowds grew and so did the excitement among the hundreds of people in attendance.

In a way, the relatively relaxed FIA regulations on how a Land Speed Record race car can be built has meant delays leading up to this event were inevitable as they give designers and engineers an infinite plethora of parameters and configurations to play with.

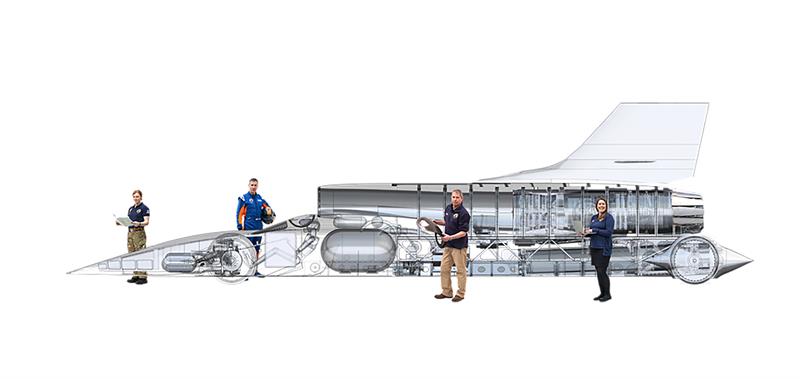

“The smallest engine in the car is the one that pumps the fuel to the rocket,” explains Mark Chapman, engineering director of Bloodhound SSC. “When we first looked at this back in 2008, we were bouncing around three or four different ideas. One of those was a small gas turbine, the sort of engine you’d find in a helicopter, about 1000hp. That’s the order of magnitude we needed.”

His team also looked at an electric option, but at the time the battery technology didn’t exist to power the motor for the 20 to 30s required to pump fuel to the rocket. The car now uses a Jaguar AJ133 supercharged V8 engine, which has a reduced power requirement of just 600hp. But the plan is to keep looking for an electric alternative to mirror the current automotive trend of hybrid/electric propulsion.

Chapman continues: “When we’re looking at running the car in future tests, we’d be foolish if we didn’t look at all those options again and look at an electric alternative. It could be a motor with a battery or even a supercapacitor.”

Although the current set up delivers what he needs, Chapman says that an electric option would add flexibility when it comes to packaging and weight distribution. The current AJ133 is a traditional internal combustion engine, but an electric pump and motor would not only be smaller, it would also allow the team to move the motor controllers and batteries around the car to shift its centre of gravity.

Real running

The test runs at Newquay ‘only’ required the car to accelerate to 200mph, meaning the bespoke hybrid rocket engine being developed by Norwegian based specialists Nammo – which is still being built and tested – was not installed, so propulsion came from the single Eurojet EJ200 turbojet.

Bloodhound’s driver, Wing Commander Andy Green, the only man in history to drive a car faster than the speed of sound, says: “The problem isn’t getting to 200mph, it’s exceeding 200mph.

“We’ve done some dynamic testing at slower speeds to establish the fact that reheat (afterburner) gives us a 70mph speed increase after we throttle back, but we also need the brakes above 300°C. I’ve been working with these guys for a long time. I can tell you that if I do what they tell me,we will get exactly the numbers we expect. The engineering here is that good and that impressive.”

After just 4s the car will reach 130mph, at which point Green must throttle the engine back to idle. Over the next 2.5s the car will continue to accelerate to 200mph. Here, Green must simultaneously make sure the engine is properly powering down and begin to slowly apply the brakes. This process brings the brake temperatures up into their necessary operating window, so he can properly slow the car before he runs out of tarmac.

Run complete

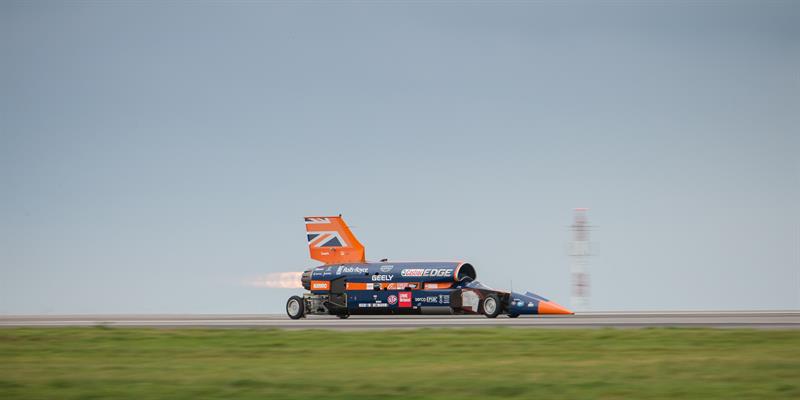

Green successfully completed two runs in 21 and a half minutes on the 26th October 2017 with the car topping out at 210mph on the second run.

“We came here to show the world that Bloodhound is go — I can’t think of a better way of doing it than that run,” says Green. “Not just one run, two back-to-back runs, the longest runs we’ve done, the highest speeds we’ve done and the most energy going to the brakes.”

The only obvious hint of a problem appeared on the brakes as one of them caught fire at the end of the first run. Though, according to Mark Elvin, engineering lead of mechanical design on the programme, who also has experience working with the Williams F1 Team, this is normal.

“On carbon brakes you get a lot of dust and as you slow down and the airflow decreases, the dust heats up very quickly and you can get a small flash fire,” he says. “It’s not actually the brakes that are on fire, it’s the dust on the brakes that’s on fire. When you move again the dust blows away and the fire stops. All the stuff around the braking environment is designed to deal with those temperatures.”

The Bloodhound team will now regroup, pore through the data, check wheel bearing temperatures, brake loads, vibration, tyre pressures and perform mechanical tests on fasteners to check that nothing has broken or come loose.

The next high-speed test is due in 12 months’ time either at Hakskeen Pan in South Africa or Edwards Air Force Base in America where the target is for the car to run to 650mph. After this the team will have to wait another year to attempt a run using the jet and rocket engines together at Hakskeen Pan while going for the record of 800mph, with the possibility of reaching 1000mph.
