Micro Moulding: A Key Process for AR Optics Precision

Learn about micro moulding's role in AR optics production, ensuring quality and clarity in cutting-edge tech.

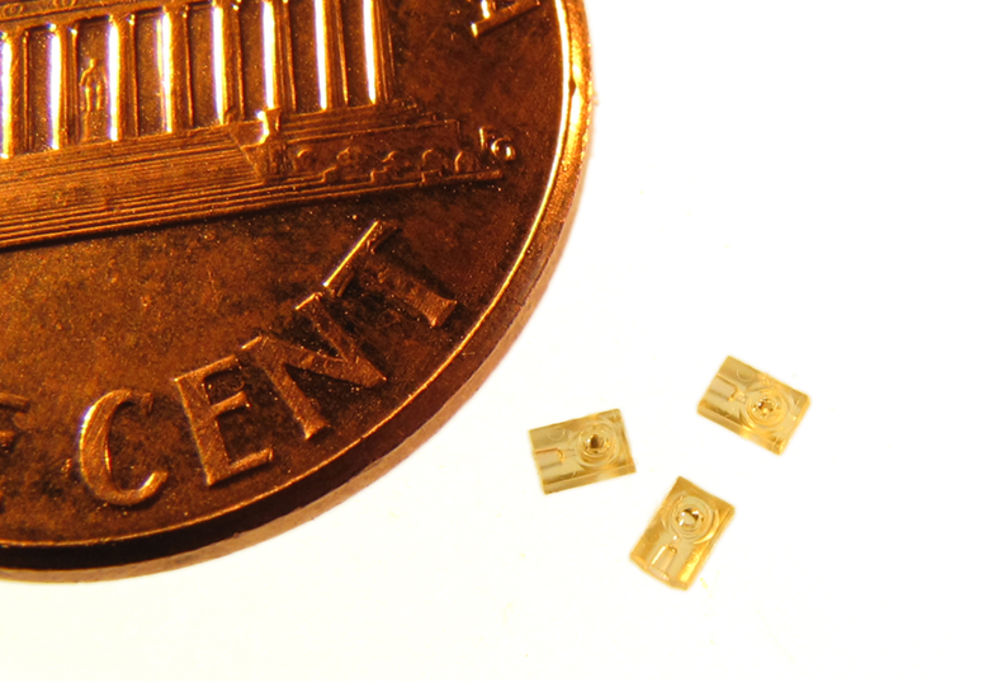

A cent coin in comparison to a micro moulding product

As augmented reality (AR) technology advances across industries, from consumer electronics to healthcare, micro moulding has become a vital process in developing the optical components needed for these systems. The precise lenses, light guides, and diffractive optical elements (DOEs) required in AR devices are fundamental to ensuring clear, undistorted images and accurate digital overlays on real-world environments. For this reason, micro moulding has emerged as a critical technology to meet the demands of high-performance AR applications.

Also read: Understanding micro-moulding with A.J. Pruitt

Meeting the Optical Requirements of Augmented Reality Devices

In AR systems, optical components like lenses, light guides, and DOEs must adhere to extremely tight tolerances to ensure image clarity and alignment. This is especially critical in devices such as AR smart glasses, where augmented images must perfectly overlay the user’s real-world view. Given the short optical paths in these systems, any deviation in the position or shape of optical components can cause image distortions or misalignment.

Micro moulding addresses this challenge by delivering micron-level precision, which ensures that optical elements are perfectly aligned. Additionally, it achieves the high surface quality necessary to minimise light scattering, a factor essential to maintaining image clarity in AR. Even small imperfections in optical surfaces can degrade image quality, so maintaining tight profile tolerances is crucial for AR device performance.

Miniaturisation and Precision Demands for Micro-Optic Components in AR

AR devices, particularly those designed for wearables like smart glasses, must be compact and lightweight. Micro moulding enables the production of extremely small optical components, from 20 microns up to 1 mm in size, often with complex features at micron-level accuracy. This capability makes micro moulding indispensable for AR applications requiring high performance in small, portable formats.

The precision required to mould micro-optics for AR demands specialised expertise. The process of moulding these intricate parts goes far beyond typical mechanical components due to the fine tolerances and delicate nature of optical parts. Micro moulders with deep expertise can meet these challenges, especially when working with complex features such as DOEs with nanometre-sized surface relief patterns.

Specialised Micro Moulding Machines for AR Optics

Standard injection moulding machines are typically not capable of producing micro-optic components. AR optics like micro lens arrays and DOEs require custom moulding equipment designed for complex structures. For example, refractive lens arrays in AR devices often measure less than 100 microns, demanding high-precision control over variables like material flow.

Companies like Accumold have created custom machines capable of producing the quality required for micro-optics in AR applications. These machines are tailored to handle intricate structures with the accuracy and consistency needed for high-tech fields like AR, advanced imaging, and medical diagnostics.

Design and Development Collaboration in Micro-Optics Manufacturing

The production of AR optics extends beyond micro moulding to encompass the design and development process, where collaboration between product developers and micro moulders is essential. Involving micro moulders in early design phases ensures manufacturability and scalable production.

Applying Design for Manufacturability (DfM) and Design for Micro Moulding (DfMM) principles helps avoid design issues that could complicate production. Minor adjustments to the geometry or material of an optical component can significantly improve its manufacturability and reduce production costs. By guiding the design process, micro moulders enable the efficient production of AR optics that meet both technical and commercial needs.

Key Applications of Micro Moulding in AR Devices

Micro moulding plays a critical role in producing AR optics for various applications, such as head-up displays (HUDs) in automotive and aviation sectors. These displays project vital information like speed and navigation data directly into the driver’s or pilot’s line of sight. Micro-moulded lenses and light guides ensure the clarity and alignment of these images with precision.

Another prominent application is in AR smart glasses, which overlay digital content onto real-world views. For these devices, optical components need to be not only precise but also compact and lightweight to ensure comfort and functionality for extended use. Micro moulding enables the production of the miniature lenses and light guides needed for these devices without compromising on optical quality.

In the medical field, AR systems help overlay imaging data onto a patient during surgery, allowing real-time visualisation of internal structures. The optics used in these systems must be highly precise, as any distortion could affect medical outcomes. Micro moulding provides the necessary precision and reliability to ensure these optics function accurately in critical medical applications.

Addressing Challenges in Micro-Optic Production for AR Devices

While micro moulding offers distinct advantages, there are challenges to overcome in producing high-quality AR optics. Tooling is a key challenge; the moulds for these complex, small components must be exceptionally precise to meet optical standards. This demands micro moulding companies with specialised tooling capabilities.

Material selection is also critical. Optical polymers must offer clarity, durability, and environmental resilience, which is why advanced polymers are often used in AR applications. Automated assembly and over-moulding techniques help further reduce contamination risk and align components precisely.
