Photo Chemical Etching in Precision Manufacturing
In today’s highly competitive and globalised manufacturing landscape, businesses are continuously seeking ways to enhance efficiency, lower costs, and reduce the time it takes to bring products to market. One technology that is making a significant impact in these areas is photo chemical etching. This versatile, precise, and cost-effective method of manufacturing is transforming supply chains by streamlining production processes, reducing lead times, minimising tooling costs, and increasing flexibility.
Also read: Micrometal Group's response to miniaturisation
This article explores how photo chemical etching is revolutionising supply chains, particularly in industries that require precision manufacturing, such as aerospace, automotive, medical devices, and electronics.
Understanding the Photo Chemical Etching Process
Photo chemical etching is a process where a photoresist is applied to a metal sheet and then selectively removed to create a pattern. The exposed areas of the metal are then chemically etched, or dissolved, leaving behind a precise, intricate design.
PCE is distinct from other subtractive manufacturing techniques, such as stamping or laser cutting, in its ability to create highly detailed, complex shapes with tight tolerances. It is particularly well-suited for working with thin metals, making it ideal for the production of components like electronic connectors, heat exchangers, filters, and precision springs.
Benefits of Photo Chemical Etching in Manufacturing
The simplicity and efficiency of the photo chemical etching process offer several key advantages that directly impact supply chains, leading to faster production, lower costs, and greater flexibility.
Reducing Lead Times with Photo Chemical Etching
One of the most significant benefits of photo chemical etching is the reduction of lead times. Traditional manufacturing methods, such as stamping and punching, often require the creation of hard tooling, which can take weeks or even months to design, produce, and test. This delay in tooling creation adds to the overall time required to bring a product to market.
In contrast, PCE does not require hard tooling. The process uses photoresists and masks, which can be rapidly designed and modified using CAD software. Once a design is finalised, a mask is created and applied to the metal sheet, and the chemical etching process can begin immediately. This drastically reduces the lead time from design to production, often to just a few days.
Minimising Tooling Costs in Precision Manufacturing
Tooling costs are a major expense in many traditional manufacturing processes. For example, in stamping or injection moulding, custom tools must be designed, fabricated, and maintained to produce each part. These tools are typically made from expensive materials like hardened steel and require precise machining, leading to high upfront costs.
PCE eliminates the need for expensive hard tooling. The process relies on inexpensive photoresist masks, which can be produced at a fraction of the cost of traditional tools. Design changes can be made quickly and affordably by modifying the digital design and producing a new mask. This results in reduced costs and enhances production agility, allowing companies to adapt to changing market conditions or customer requirements without incurring significant expenses.
Enhancing Flexibility with Photo Chemical Etching
Flexibility in production is a critical factor for success for many manufacturers. Traditional manufacturing methods, with their reliance on hard tooling and complex setups, often lack the flexibility to respond quickly to changes in demand or design specifications.
PCE offers unparalleled flexibility. The process can be easily scaled up or down, allowing manufacturers to produce small batches or large volumes with equal efficiency. This is particularly advantageous for companies producing prototypes, custom parts, or components with variable designs.
For example, in the aerospace and medical device industries, where each component may need to meet unique specifications, photo chemical etching provides the ability to produce customised parts without the need for costly retooling. This allows businesses to respond rapidly to customer requests for specialised designs or modifications, ensuring they can meet the demands of a dynamic market.
Optimising Supply Chain Efficiency with Photo Chemical Etching
The cumulative impact of reduced lead times, minimised tooling costs, and enhanced production flexibility is a more efficient and streamlined supply chain. By eliminating the need for hard tooling, PCE reduces the bottlenecks often associated with tool creation and maintenance. Faster production times mean parts can be delivered more quickly, reducing inventory requirements and allowing businesses to operate with leaner supply chains.
Cost savings associated with PCE also allow manufacturers to produce parts more affordably, even in smaller quantities. This is beneficial in industries with volatile demand, where companies may need to produce limited runs of specialised components. By reducing the cost per part, PCE allows businesses to maintain profitability while minimising the risks of overproduction or excess inventory.
Environmental Benefits of Photo Chemical Etching in Manufacturing
In addition to its supply chain benefits, photo chemical etching offers environmental advantages. The process is inherently low-waste, as it removes only the material necessary to create the desired design, leaving minimal scrap. The chemicals used in the etching process can be recycled and reused, further reducing waste and minimising the environmental footprint.
Because PCE eliminates the need for energy-intensive machining processes required to create and maintain traditional tools, it reduces the overall energy consumption of the manufacturing process, contributing to a more sustainable production model.
Real-World Applications of Photo Chemical Etching

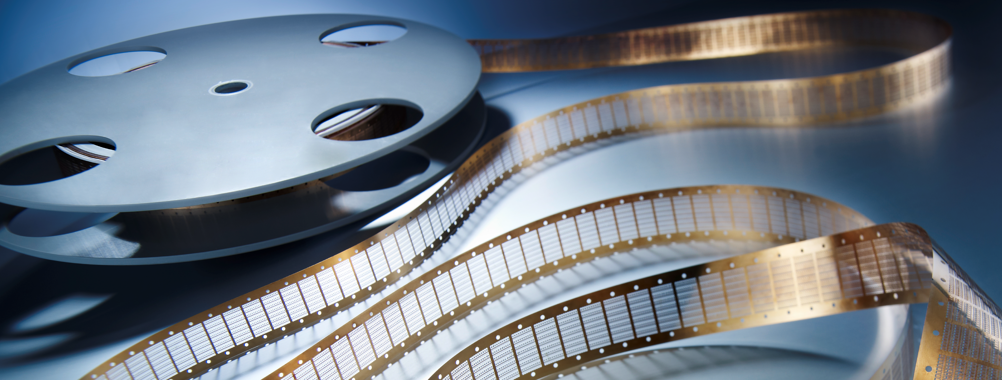

To fully appreciate the transformative impact of PCE, it is helpful to examine some real-world applications. In the electronics industry, PCE is widely used to produce precision components like connectors, shielding, and sensors. Its ability to produce intricate designs with tight tolerances and minimal lead times has made PCE the go-to solution for many manufacturers.
Similarly, in the aerospace industry, PCE is used to create complex metal parts for aircraft engines, fuel systems, and heat exchangers. In the medical device industry, photo chemical etching has enabled the production of highly specialised components, such as surgical instruments and diagnostic equipment.
Conclusion: The Future of Photo Chemical Etching in Precision Manufacturing
Photo chemical etching is disrupting supply chains in precision manufacturing by reducing lead times, minimising tooling costs, and enhancing flexibility in production. As businesses face increasing pressure to deliver high-quality products faster and more efficiently, the advantages of PCE are becoming impossible to ignore.
By embracing this innovative technology, manufacturers can streamline their supply chains, reduce costs, and gain a competitive edge in today’s dynamic market. Whether producing intricate electronic components, high-performance aerospace parts, or custom medical devices, photo chemical etching offers a flexible, efficient, and environmentally friendly solution for modern precision manufacturing.
