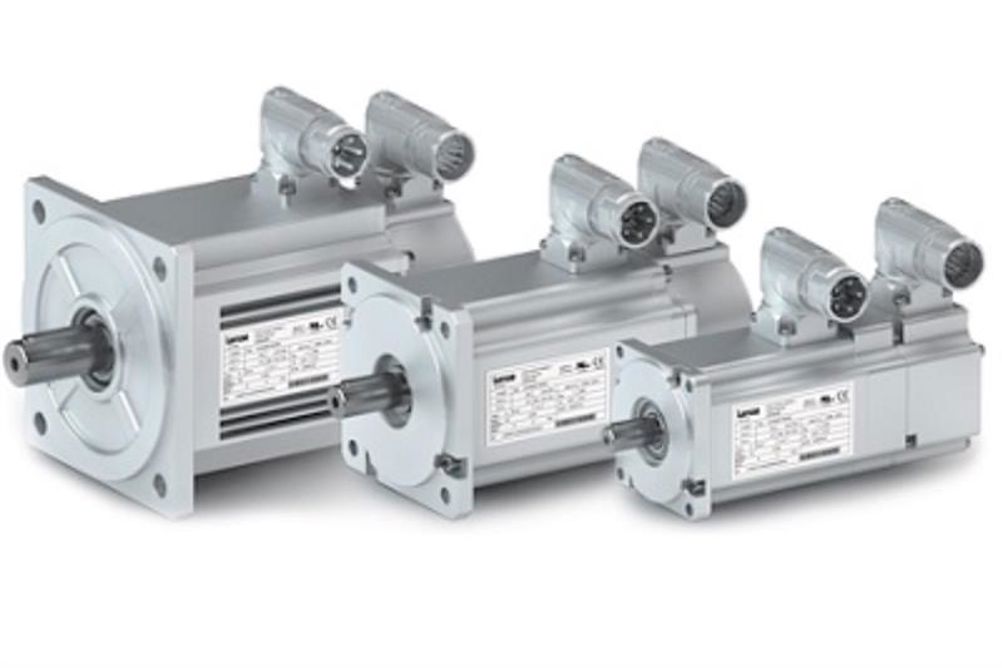

MCM motors are available in seven motors in three frame sizes for rated torques between 0.6 and 26Nm. They are matched by existing single and multi-axis servo inverters, also application based motion software.
Robust resolver feedback is standard with the alternative option of a multi-turn sin/cos absolute en-coder for high precision. Output mounting with B5 flange and shafts can be supplied with or without keyways. The housing of the series has smooth, easy to clean surfaces with IP65 protection, qualifying the motors for use in the food industry.
SpeedTec connectors are said to allow rapid installation with only 1/8 turn of the plug. The connectors themselves can be rotated to best suit the mounting position and preassembled power and feedback cables are available.
