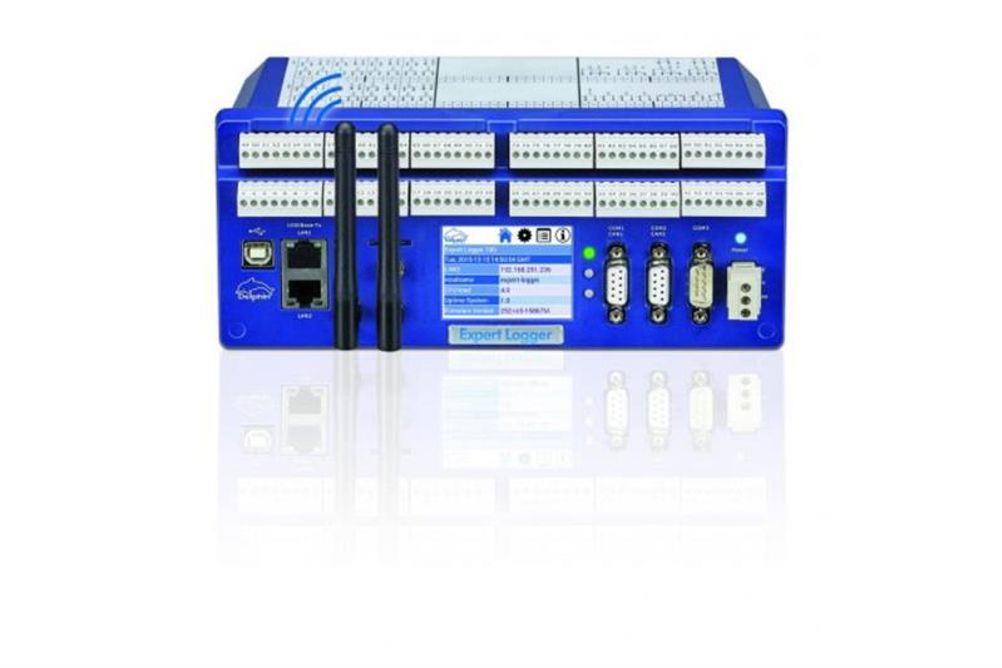

The new type 400 is equipped with 16 universally usable, differential analogue inputs for measuring mV and mA signals or any type of thermocouple. 24-bit precision and a maximum rate of 1000 measurements per second meets the highest demands required from a data logger. The new Expert Logger also has the option of measuring Pt100(0) sensors using 2, 3 or 4 wire technology or DMS. The device has a total of 24 switchable digital inputs/outputs which can record edge and fault events at microsecond precision as well as output alerts. A total of six analogue outputs enable the operation of regulating and control elements.
The Expert Logger series offer a range of model types with 16 to 46 analogue inputs which are ideal for independent data acquisition and test bench automation. Monitoring functions can also be performed independently within the device. Measurement data and threshold violations can be immediately transmitted to subsystems via OPC UA. The OPC UA interface also offers data exchange to PLC systems and connecting to PLT systems.
