Metra-Batch can be used for blending or bottle/tank filling of chemicals, food ingredients, beverages, fuels and solvents. Ruggedly constructed it can be configured as a plant or panel mounted unit offering a two stage batching facility with selectable automatic over-run compensation as well as safety features to prevent erroneous dispense with a faulty system.
The 8-digit batch display is selectable to count either up or down, in engineering units, or can show the current flow rate, or total product consumption on a password protected accumulator, as well as number of batches delivered. The unit can transmit totaliser and rate of flow data for remote monitoring.
Several units may be used in conjunction with each other with lock out and networking enunciation giving the user full operating data. Weatherproofed to P67 (NEMA 4X) standards the controllers robust housing is purpose designed to suit harsh industrial environments.
Easy to use liquid flow controller

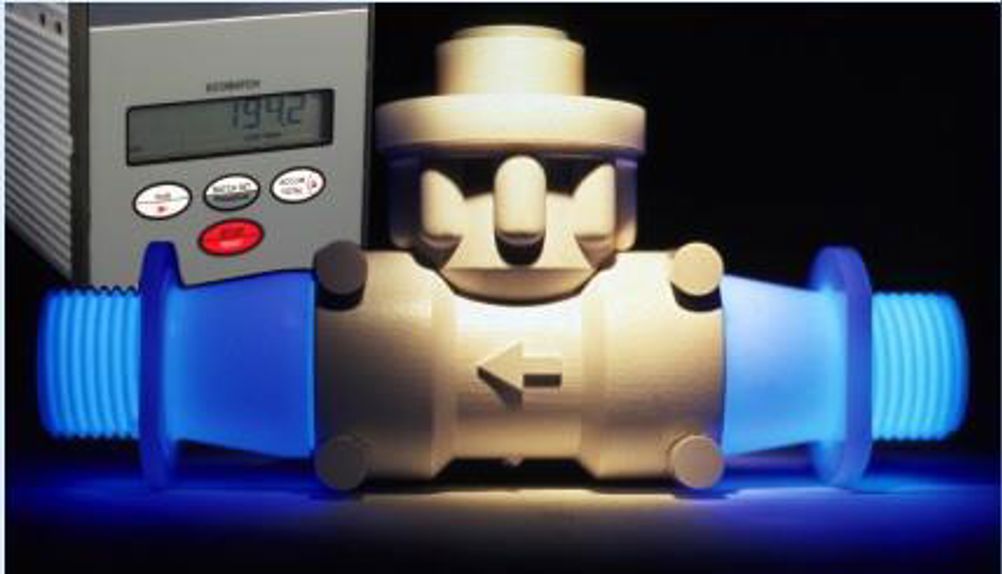

Titan Enterprises' batch control device, Metra-Batch, gives easy to use, precise control to flowmeters or machinery with pulse or frequency outputs.
