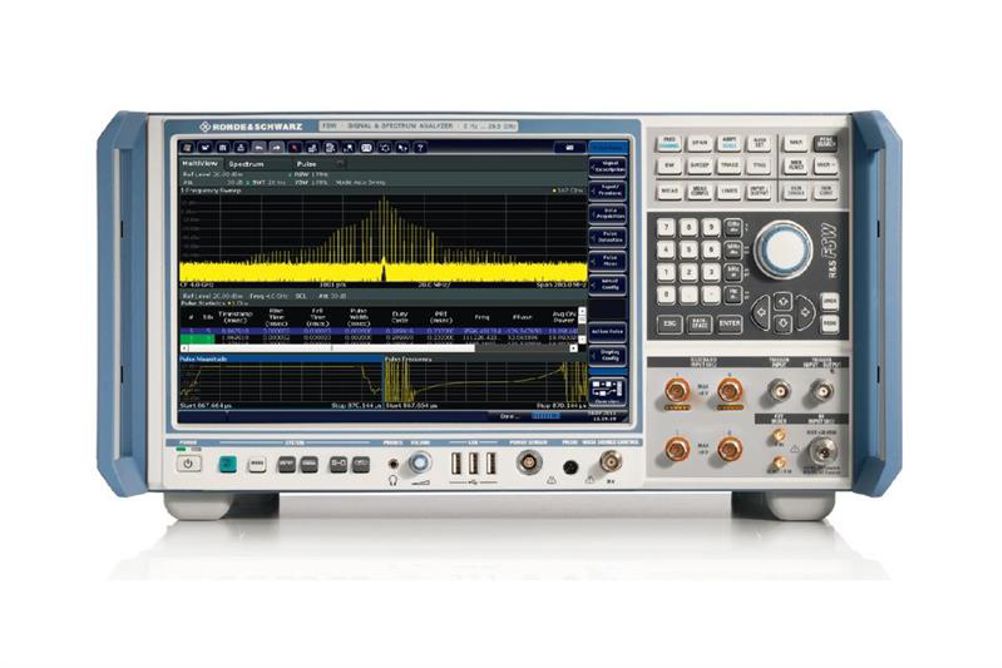

Aimed at the analysis of the complex signals from next generation mobile networks, wireless LAN systems, satellite communication infrastructure and radar equipment, this instrument is said to be able to rapidly determine the presence of spurious emissions, deal with wideband frequency hopping signals and track short pulses.
This high performance signal/spectrum analyser solution can be supplied in a variety frequency range options - from 2Hz to 8/13.6/26.5/43.5/50/67GHz. When accompanied by an external harmonic mixer the upper limit can be boosted to reach 110GHz. The unit has <0.4dB total measurement uncertainty for any frequency below 8GHz.
The 12.1in touch-enabled display provides an intuitive user interface. By utilising its MultiView function, a series of measurements can be displayed alongside one another in separate windows making it easier to consult different sets of results and minimising the risk of errors occurring.
