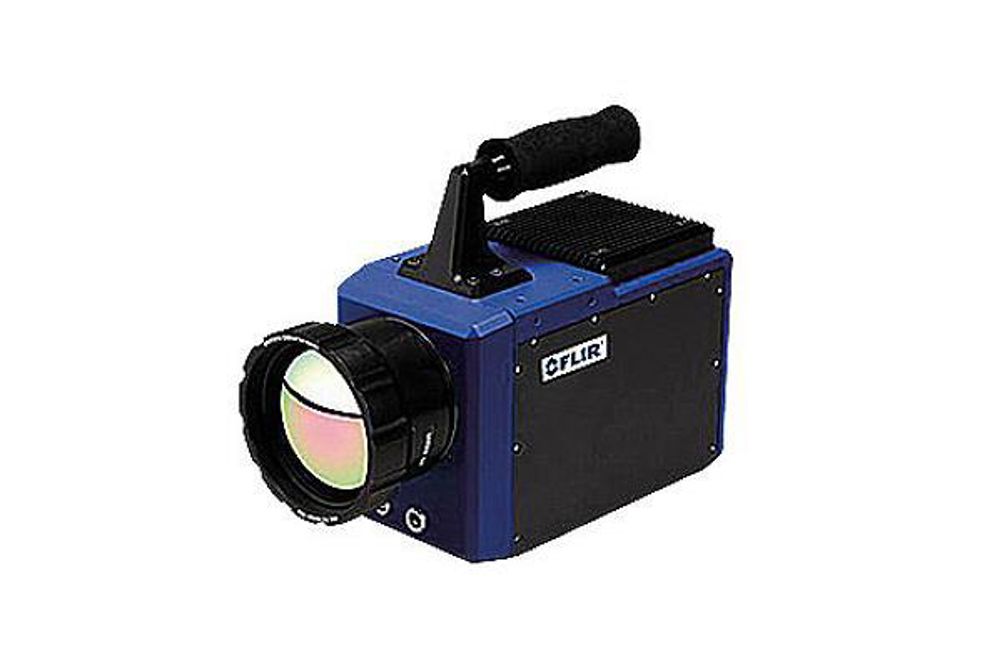

Designed to address any application in single and multispectral analysis, FLIR SC7000 Series cameras offer researchers a choice between mid-infrared Indium Antimonide (InSb) as well as mid-infrared and longwave infrared Mercury Cadmium Telluride (MCT) detectors. In addition, the series comes standard with a removable, motorised four position filter wheel enabling high performance imaging of events in a select part of the electromagnetic spectrum.
The SC7000 series can produce high quality infrared imagery in 640 x 512 or 325 x 256 pixel formats with high sensitivity and noise levels as low as 20mK. Windowing allows a subset of the total acquired image to be selected with user adjustable window size at frame rate speeds of up to 62,000Hz. Camera integration time on the SC7000 Series is adjustable in nanosecond increments. This smart external triggering feature allows synchronisation of the image capture to the most fleeting events.
Benefiting from FLIR's Hypercal technology, SC7000 series cameras are claimed to ensure the most accurate temperature measurement with the highest sensitivity. Simply set the desired lower and upper temperature limits and the camera will automatically adjust to the appropriate integration time.
Leveraging FLIR unique Superframing technique enables SC7000 Series camera users to sequentially acquire thermal data from up to four user-defined temperature ranges, and then merges those streams into a single real-time video that spans all four temperature ranges, effectively extending dynamic range from 14-bit to 16-bit.
CNUC is a proprietary FLIR calibration process that provides unmatched high quality imagery and measurement stability on SC7000 Series thermal imaging cameras. CNUC allows flexible integration time adjustments without the need to perform non-uniformity corrections. CNUC calibration also produces accurate measurement stability regardless of camera exposure to environment variations.
