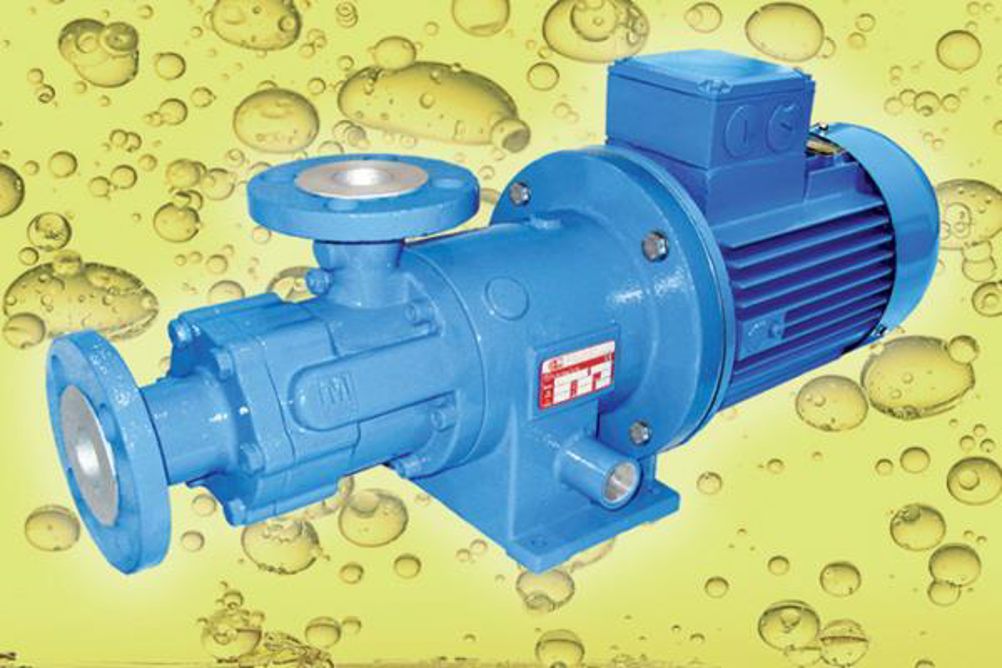

The series is offered in corrosion resistant 316 stainless steel as standard with flows available of up to 25m3/hr, differential heads to 310m and viscosities up to 200cSt. The compact pumps can be close coupled to motors to eliminate the requirement for a baseplate and remove misalignment issues.
In addition to the standard models in stainless steel; Hastelloy C, Incoloy and Duplex material options are also available to offer resistance to corrosive liquids and demanding environments, ensuring a longer pump life. Four different sleeve bearing combinations are available including metallised carbon for short term dry-running to prevent major failure in the event of a system upset.
The design of all M Pumps turbine models incorporates a removable wet-end cartridge which allows the pump to be serviced in three simple steps in-situ, minimising downtime.
The CT MAG-M Series is said to meet system pressure requirements up to 50bar, maximum temperatures of up to 350°C, and can be designed for use in ATEX area applications.
