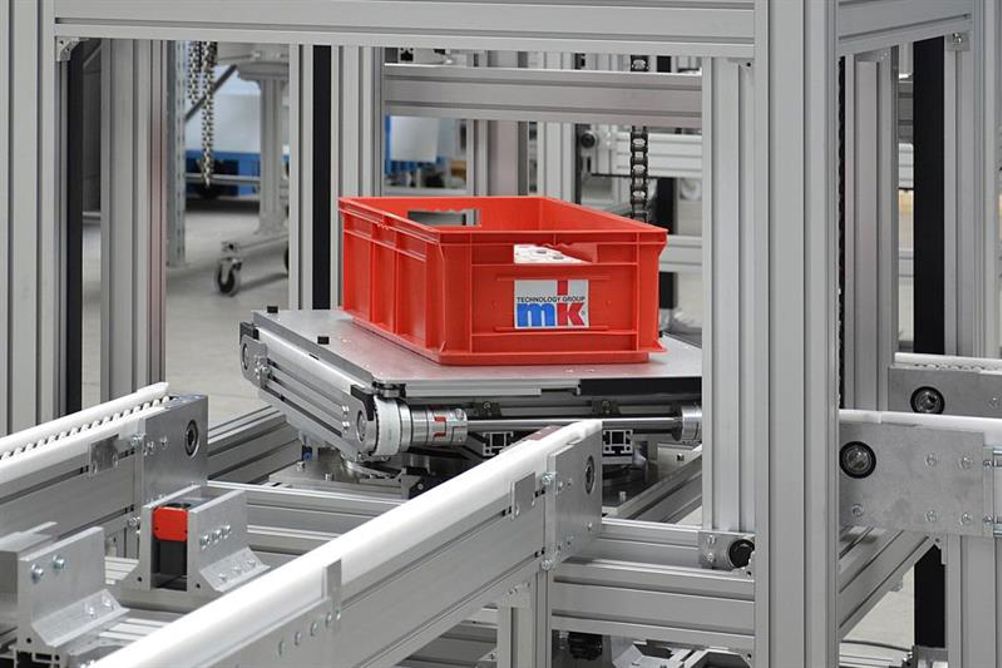

The lift unit with a slewing ring and timing belt conveyor SRF-P 2010 has a capacity of 300 kg. A counter weight and motor including holding brake can secure a load of up to 600 kg.Additional pegs are incorporated at transfer stations. A feed-in and storage area with reinforced SRF-P 2012 caters for a load of 300 kg/m and up to 1,200 kg total capacity, during 3m/min.
The entire system is provided by mk who work closely with its customer during the consultation, planning and implementation stage of the system. Their concept offers both space and cost saving to a customers' manufacturing process and the lift can be disassembled for transportation purposes.The high load capacity is based on mk's 50 series profile range and is said to be both low maintenance and wear-resistant.
