Linear servo accelerometers
Sherborne Sensors has announced the A323 'L' series, a range of highly rugged, ultra-low range gravity referenced linear servo accelerometers with 4-20mA (closed loop) output. The accelerometers are designed for use within low acceleration analysis, structural health monitoring, flight test, and civil engineering applications.
The A323 'L' series offers measurements over a range of +/-0.1 to +/-2.0 g, with frequency response down to DC. The gravity referenced, closed loop sensors are designed to monitor acceleration down to 20 micro g, yet rugged enough to withstand up to 1500g of mechanical shock.

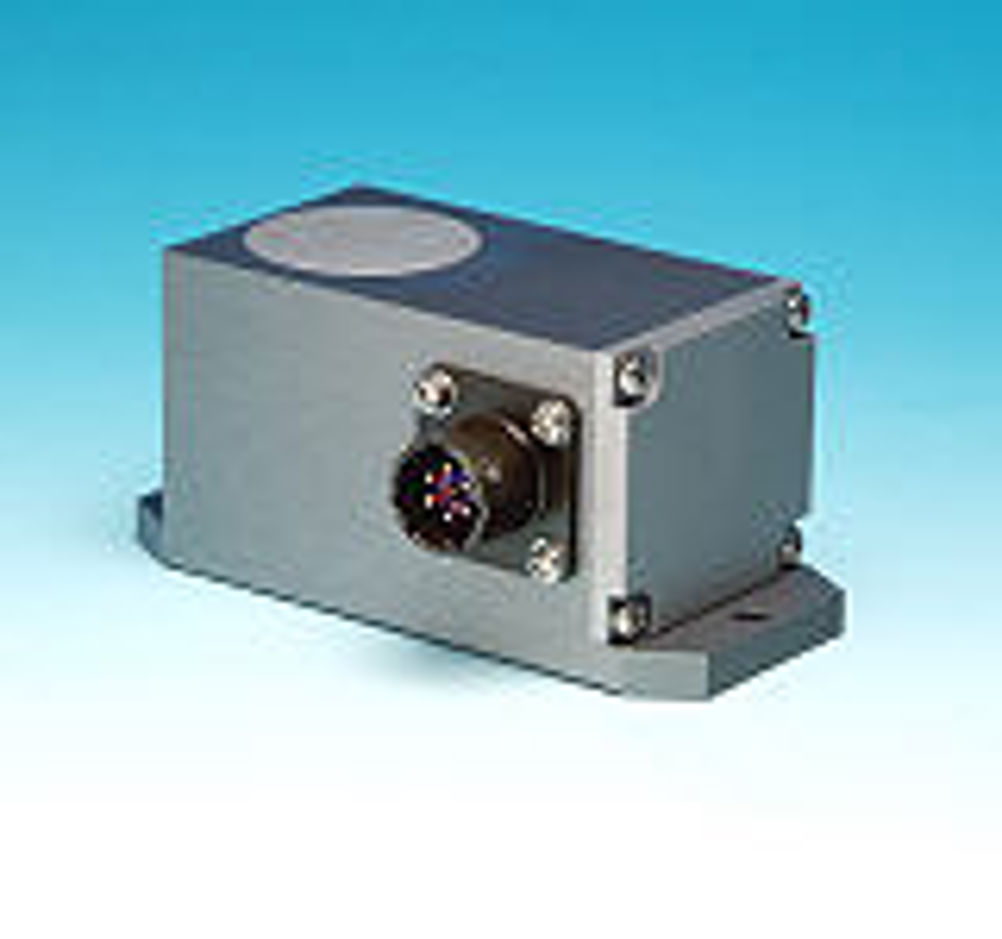

Sensors are housed in a rugged, anodised light alloy case with IP65 environmental sealing, and can be specified with 6pin Bayonet lock or solder pin connector. An optional 1g bias is also available.
Units are fully self-contained and able to be connected to a DC power source and readout or control device to form a complete measurement system. Recommended accessories for the A323 'L' series are an optional mating connector and indicator read-out, both available from Sherborne Sensors.
All Sherborne Sensors A323 'L' series gravity referenced linear servo accelerometers are designed and manufactured at our AS9100B certified manufacturing facility, are 100% factory tested and calibrated prior to shipment and are accompanied by a two year product warranty.
