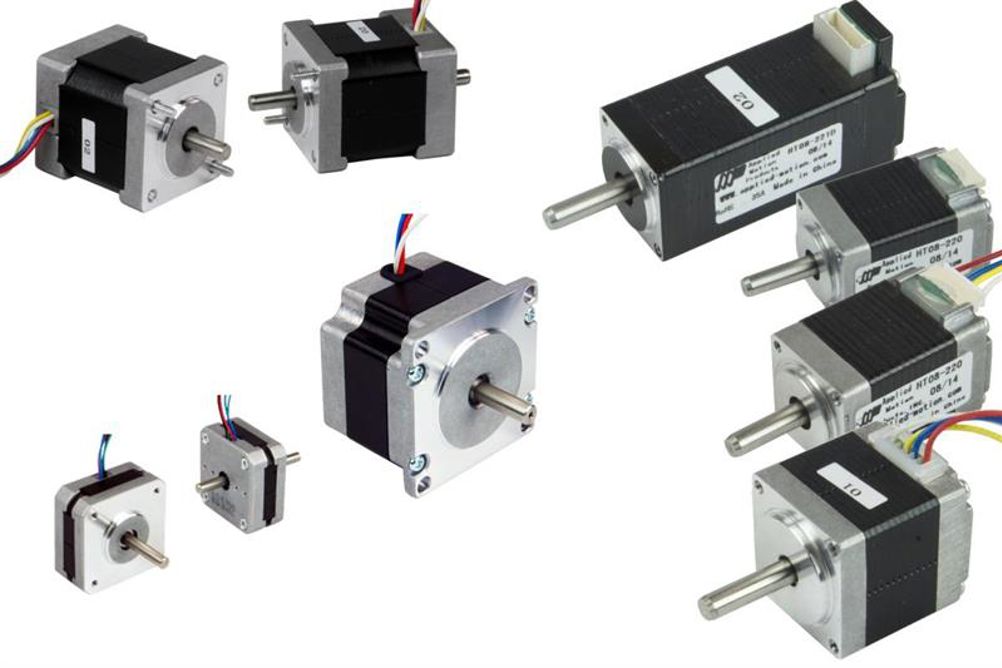

The miniature stepper motors will suit motion automation applications such as medical and laboratory equipment, camera controls, pumps and consumer electronics where installed space is limited but high torque and precision positioning is essential. The 0.9° stepper motors, featuring 400 full-steps or 800 half-steps per rev with normal stepper drives, are said to provide smoother and quieter performance than the standard 1.8° motors in applications where microstepping drives are considered too elaborate, not available or where a basic half step drive is already specified.
The compact NEMA motors are all 2-phase, 4-lead bipolar connected and range from size 8 to 14. Through the range the motor length is from around 26 to 53mm with available holding torque from 1.5 to 18Ncm. The 0.9° motors are offered in NEMA frame sizes 14, 17 and 23.
