Motorised positioning series targets industrial applications
Heason Technology has unveiled a new range of stepper motor driven miniature positioning stages for low cost applications in laboratory and research as well as automated alignment for production and test.

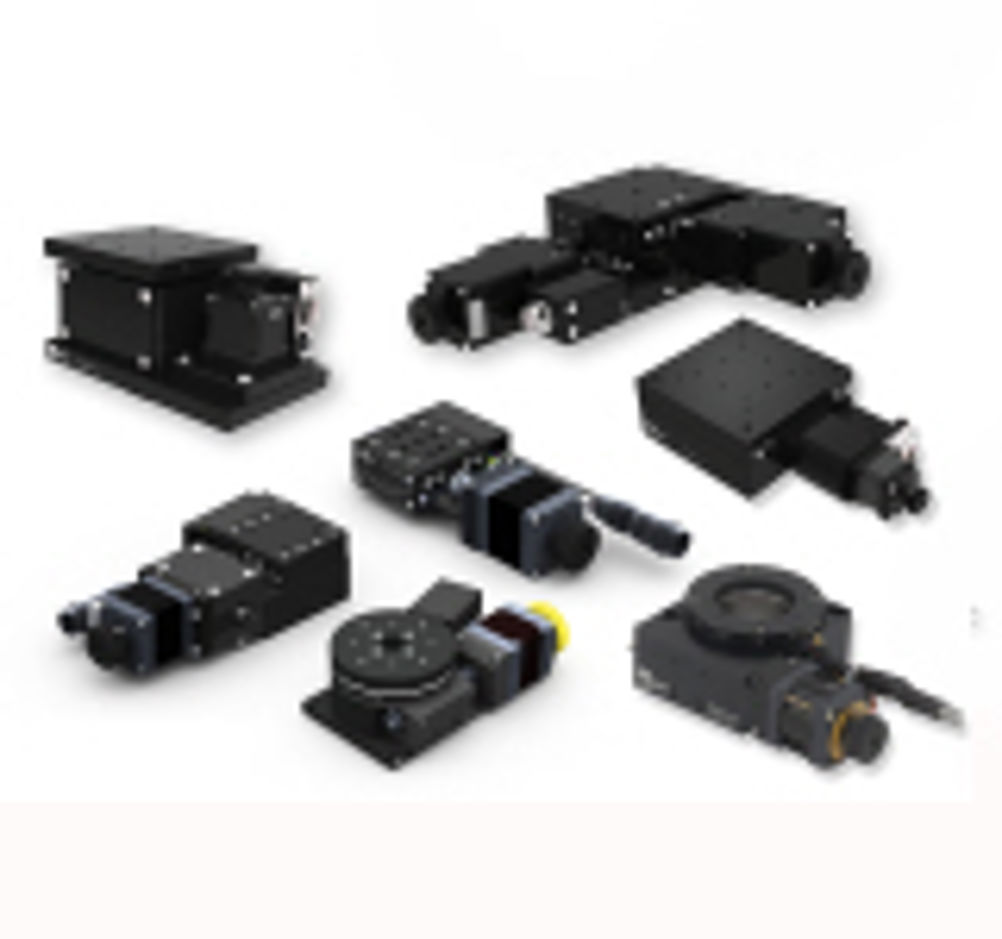

The AX linear positioning stage series is targeted at medium precision use and includes linear, rotary, goniometer and vertical elevation stages together with DSP controlled high performance microstepping drives.
The range is available for travel from 15 to 70mm in a choice of precision grades, offering positioning accuracy to 5microns and repeatability to +/-0.3microns. Available with a table size from 40 x 40mm to 120 x 120mm, it features a high precision 1.0mm pitch ball screw drive and both cross roller and caged ball designs for loads up to 20kg.
Additional features include an integral and adjustable card mounted home and over-travel switches that link with a motor connector system, facilitating straightforward and fast installation for all stage electrics.
