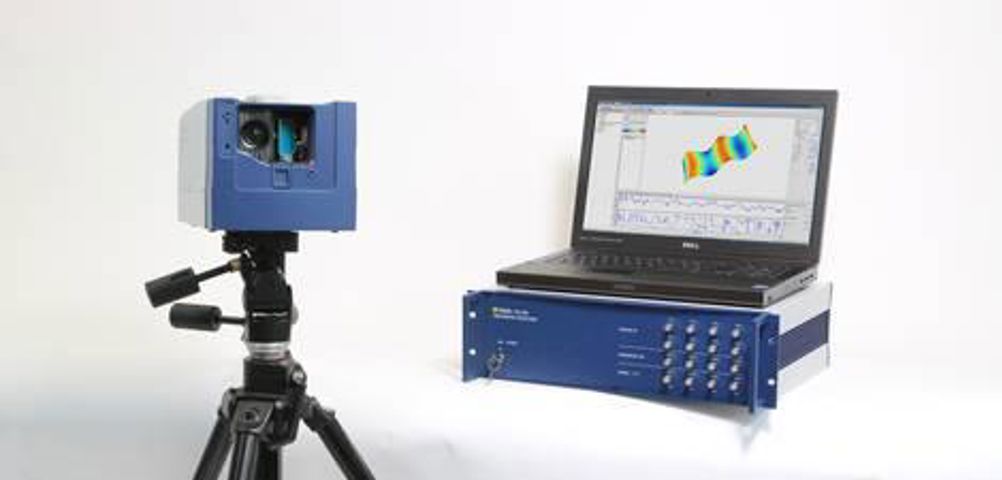

According to the company, this turnkey system offers all the advantages of a laser vibrometer integrated with the accuracy and comprehensive data processing, traditionally associated with the company's advanced scanning optical vibrometers.
It has direct surface vibration measurement on large or small structures, non-contact, zero mass loading, suitable for lightweight surfaces. Hot or cold surfaces can be measured, as well as unspecified dangerous ones.
There is the capability for real data for closed loop, fast finite element model validation and the high data density and the fact that there are no wires are claimed to be optimised for both failure analysis and research.
The deflection shapes can be colour coded as 2D or 3D graphics for display purposes. Frequencies of interest are selected from the spectra using a cursor. The video image can be animated in 3D to show exaggerated, life-like motion of the structure. Animated profile slices also help the user understand the vibration in detail. Response to transient events can be shown in a high resolution, slow motion time domain animation. The pertinent spectra, transmission functions, coherence and time signals) are available for analysis at every individual measurement point. The graphics and animations can be pasted into reports and presentations.
The compact box integrates digital decoding and data acquisition. VibroLink transfers all measurement data without conversion losses to the data management system with unparalleled low noise.
