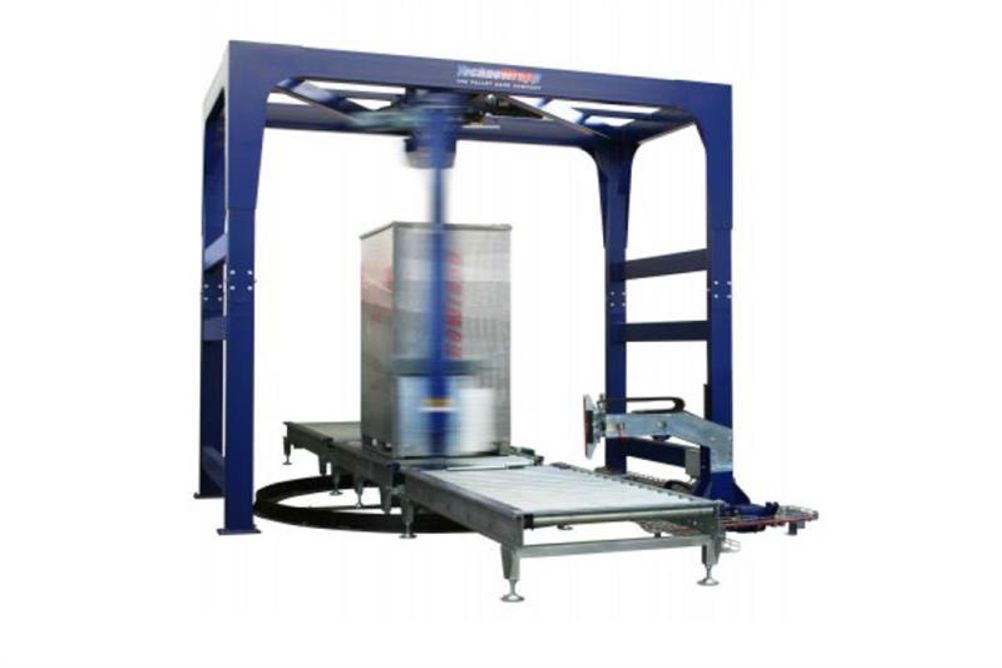

The world's fastest arm pallet wrapper

Through collaboration with Bonfiglioli, Technowrapp has created Runner Arm, a combination of high performance and simplicity of operation and maintenance for pallet wrapping applications.

With the Runner Arm, Technowrapp engineers have combined the high performance of a ring wrapper with the simplicity of operation and maintenance typical of an arm type wrapper to produce what they claim is the fastest arm pallet wrapper in the world. Thanks to two patents that make it possible to speed up the wrapping process, Runner Arm is claimed to be able to wrap 136 pallets per hour using 76g of 15µm thick stretch wrap film, and 10 turns per pallet.

In the production of the Runner Arm, Technowrapp utilised Bonfiglioli´s C, W, and BE/BN motor series for the pallet and vertical carriage movement as well as the ring rotation and the servo-assisted tensioning systems.

The various Bonfiglioli motors were used for the tensioning, feeder, and plier carriages as well as for the presser and linear roller. These various motor solutions have aided Runner Arm achieve high speeds while maintaining low structural stress.
