TIAM4 sensor solution
The integrated TIAM4 module from MAZeT has a spectral operating detector which contains the entire SoC

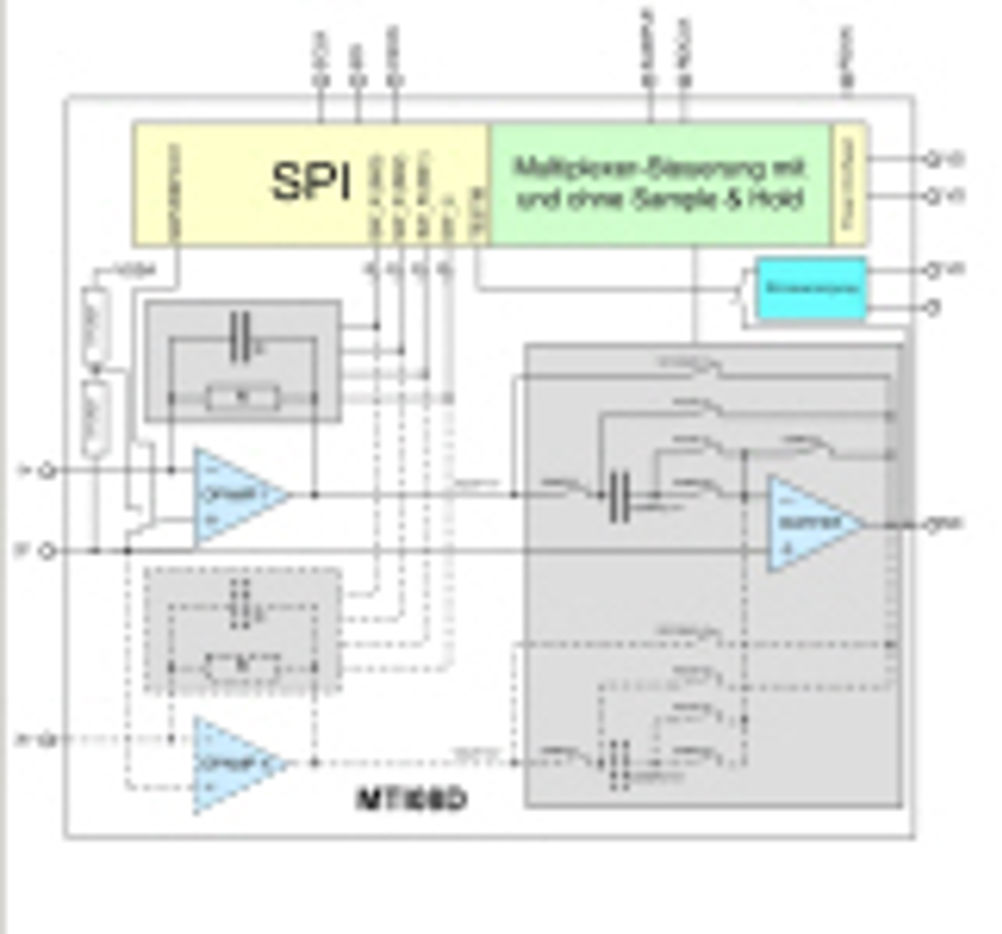

The photocurrents of the detector are converted into voltages and available via S & H on a MUX on the output side as an analogue voltage signal for digital conversion. The TIA based amplifier is said to be individually programmable in transimpedance over eight levels and is characterised by a linearity in the amplifier stages as well as low noise.
According to MAZet, the TIAM4 is a compact sensor solution that, combined with a suitable light source, is suitable for fast and/or portable colour measuring. An extensive software library for highly accurate and fast colour measurement is also available. For initial test measurements, evaluation boards can be optionally integrated in their own test software using DLLs.
