In the quest for nanoscale precision, the configuration of gantries has become a key factor in enabling advanced manufacturing processes. What was once reserved for specialised applications has now evolved into a critical component in many industries, from the intricate assembly of semiconductor chips to the high-stakes precision of medical diagnostics.
In this environment, where accuracy defines success, companies cannot afford to settle for anything less than flawless motion control. ALIO Industries stands at the forefront of this movement, delivering expertise that drives innovation in ultra-precise manufacturing.

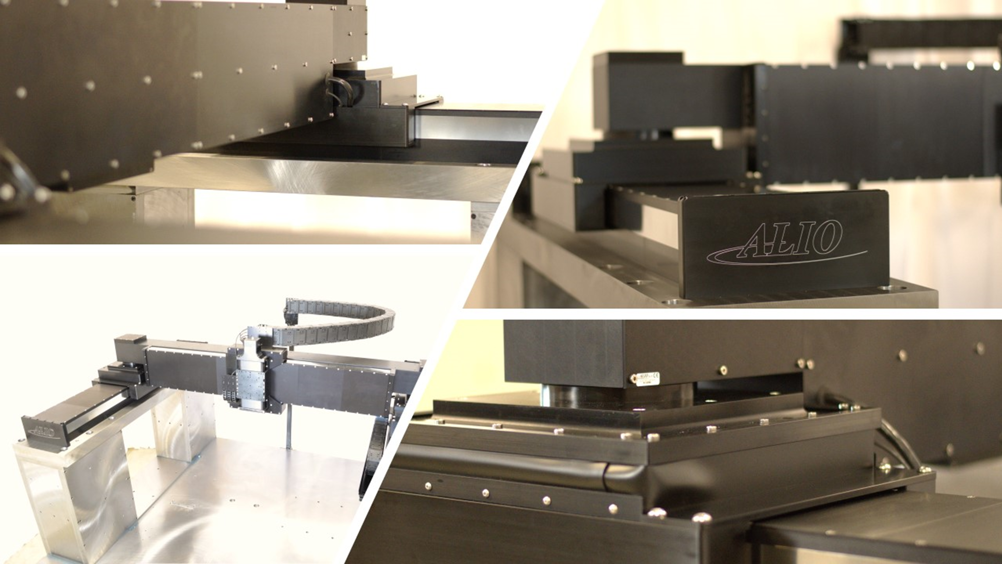

A gantry configuration in an ultra-precise motion control system refers to a complex framework designed to move dynamically over a large workspace with extreme accuracy. These systems typically feature linear axes that facilitate movement across the X, Y, and Z planes, essential for multi-dimensional tasks. But in the realm of ultra-precision, gantries must do more than just move — they must move with an exactness that accounts for disturbances like vibrations, thermal expansions, and even minute environmental fluctuations. This is where ALIO excels, ensuring that its gantry systems deliver movements consistently down to the micron or even nanometre scale.
The addition of rotational (yaw) motion — movement around a vertical axis — is equally crucial. ALIO has pushed the boundaries of yaw control with its “Yaw Compliance” option, a virtual rotary axis that compensates for small angular misalignments. This innovation enables precise adjustments and provides flexibility, allowing yaw motion to either act as compensation for errors or as an intended movement axis. When combined with ALIO’s highly configurable gantry robots, this option delivers industry-leading accuracy, with systems achieving precision as fine as +/- 1.5µm. This level of accuracy is particularly valuable in industries where any misalignment, no matter how small, can lead to costly errors or product defects.
Bill Hennessey, President of ALIO Industries says, “The value of engaging with a supplier that understands the complexities of motion control cannot be overstated. There is a reason that customers engage with ALIO as they strive to innovate new manufacturing processes and products. Engaging with a motion control systems supplier like ALIO with a deep understanding of motion challenges is vital due to the inherent demand for precision and accuracy in many applications. Whether in manufacturing or R&D, accurate multi-dimensional movement is crucial.”
Every application has unique motion requirements, and a one-size-fits-all solution is often inadequate. Suppliers like ALIO, with a deep understanding of motion control challenges, can tailor systems to meet specific demands. This customisation not only enhances performance but also eliminates unnecessary features, reducing costs and improving system durability. The end result is a system that not only delivers accuracy but also stands the test of time, requiring less maintenance and providing a higher return on investment.
As industries evolve, so too must the equipment that supports them. ALIO’s expertise in gantry configuration makes it uniquely equipped to adapt to the changing needs of the market. Their systems are designed to remain relevant, capable of being updated and modified as new demands arise. This adaptability ensures that clients get the most from their investments, maximising the operational lifespan of the machinery.
In highly specialised applications, even small discrepancies in motion control can lead to major issues. Poorly configured systems may suffer from misalignment, wear out prematurely, or introduce inefficiencies that slow production.
Hennessey concludes, “These issues can have far-reaching consequences. Working with a motion control supplier that lacks a comprehensive understanding of gantries and the addition of further motion axes can lead to significant challenges. Such oversight can result in systems that fail to deliver the required precision and accuracy, potentially causing production inconsistencies or product defects. For manufacturers aiming to push the boundaries of precision, partnering with a supplier like ALIO is essential. Our expertise in gantry and yaw configurations is more than just a competitive advantage — it is a necessity for driving innovation and achieving ultra-precise manufacturing excellence.”
