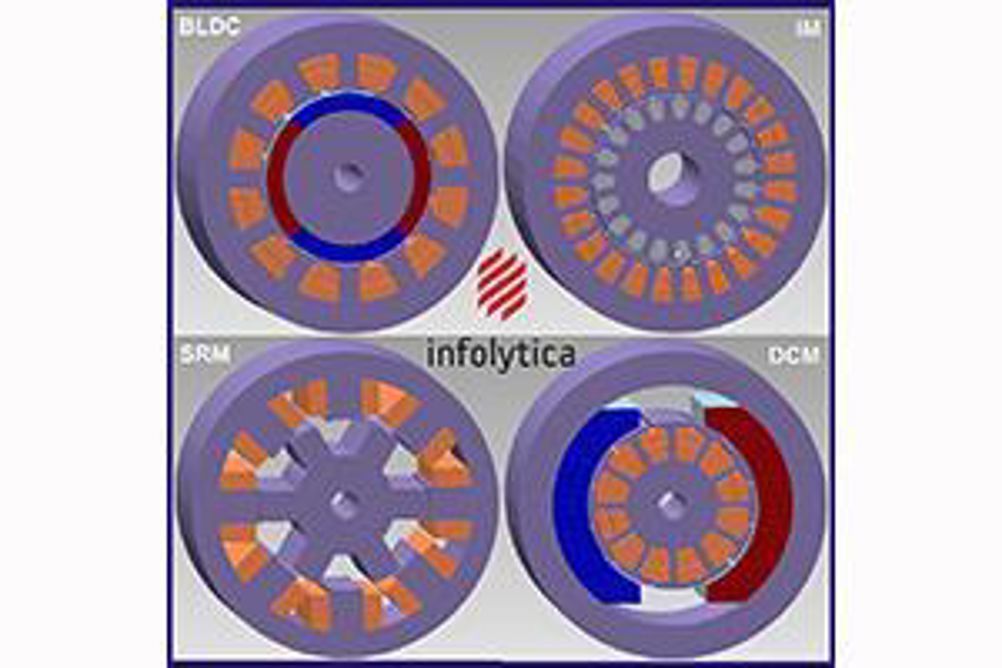

Motor designers can rapidly simulate and get motor performance characteristics using MotorSolve, the powerful software that offers their complete analysis needs in one design environment. The template-based interface combined with the variational geometry modelling makes the software easy to use yet flexible enough to handle virtually any motor design.
MotorSolve simulates machine performance using an automated finite element analysis engine. There is no need to construct the model, perform mesh refinements and extensive post-processing to extract motor related results - MotorSolve performs these operations for the user.
Now with Generator Analysis
With the release of MotorSolve 6.0, Infolytica has added a generator analysis option. This option provides analysis tools such as voltage regulation, operating point analysis, and power vs speed curves. There are also general analysis programs, designed to obtain quantities not provided by the predefined analysis modes. Examples include motion analysis, reduced order model analysis, and D-Q analysis.
MotorSolve 6.0 helps engineers obtain standard motor/generator parameters, or design specialized virtual experiments. Users can display waveforms, FFTs of the waveforms, phasor diagrams, and time-averaged values of many quantities. Multiple designs can be analyzed at the same time and results of the different designs compared.
View the Webinar
A recent Webinar introduces the new features in the MotorSolve 6.0 Generator mode, and can be viewed at www.infolytica.com/en/news/?page=webinars:
- Discover the generator analysis functions of MotorSolve 6.0
- Learn about additional design and display tools for motor analysis
- Understand how "compensating controls" such as industrial-grade firewalls protect user systems
- Review an example of generator analysis using MotorSolve 6.0
For more information contact:
Infolytica Europe
Tel: 01327 810383
Email: enquiries@infolytica.co.uk
