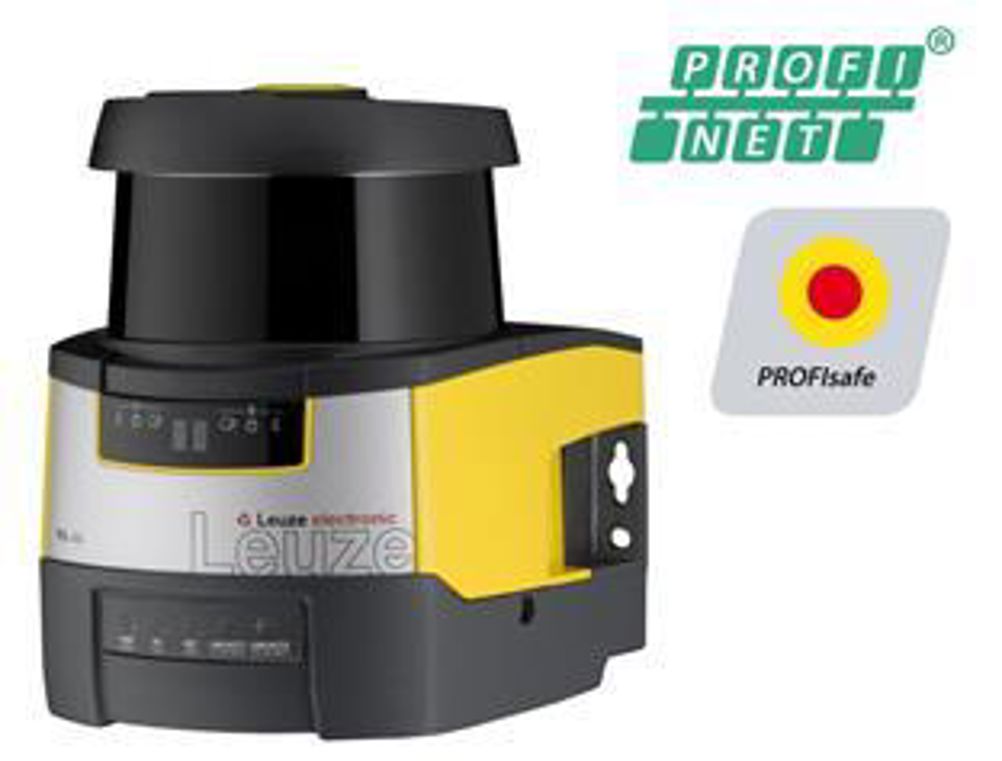

Certain areas on machinery, systems and vehicles must be monitored for safety reasons in order to protect people or prevent collisions. The RSL 400 takes care of this easily and efficiently. Thanks to its large operating range of 8.25 meters and a scanning angle of 270 degrees, it can monitor even large areas. With its two protective functions and two pairs of OSSDs, the RSL 400 acts as if it was two independent scanners, thus solving applications that previously required two devices. To add to this the new safety laser scanner RSL 400 PROFIsafe with PROFINET interface now offers simple integration into industrial networks. In addition to secure communication, this enables easy diagnostics and configuration via central access points. The PROFINET switch is integrated into the removable connection unit. This enables the replacement of a scanner without network interruption, thus increasing system availability. The connection unit has standardized connection technology with M12 connectors. The integrated 2-port switch supports PROFINET Conformance Class C and Isochronous Real Time communication (IRT). Consequently, the RSL 400 is suited in particular for use in line, ring and star topologies. Furthermore, it allows parallel access of standard and safety PLCs, whereby the data load can be minimized through the safety PLC.
With many clever functions such as the integrated spirit level, the removable connection unit and the integrated display make commissioning and handling a breeze. With nine functional variants with staggered operating ranges, you are sure to find the safety laser scanner that works best for your application.
