Developed by Optocraft, a member of the Micro-Epsilon group of companies since 2018, SHSLab Shack-Hartmann wavefront sensors are used for applications such as optics testing, optics alignment and laser beam characterisation. Wavefront sensors are used in production and R&D in optics manufacturing, laser industries, astronomy and space applications, as well as by contact- and intra ocular lens manufacturers, including mobile phone optics, microscope and photographic lenses.
Laser beams with an orbital angular momentum (OAM) or so called optical vortex beams are light waves that can transduce rotational transversal forces, for example, the turning of a door knob. The corresponding wavefront exhibits a helical structure and is usually described by Laguerre-Gauß modes.
OAM beams can be formed by spiral phase plates, computer-generated holograms, spatial light modulators, optical nano-antenna arrays or ring resonators. Applications include the rotation of particles trapped in an optical tweezer, the generation of weak microfluidic currents, STED microscopy and edge filtering by spiral phase contrast imaging, as well as improved optical data transmission and quantum cryptography. A versatile tool for the characterisation of OAM beams is the Shack-Hartman wavefront sensor.
Experimental setup

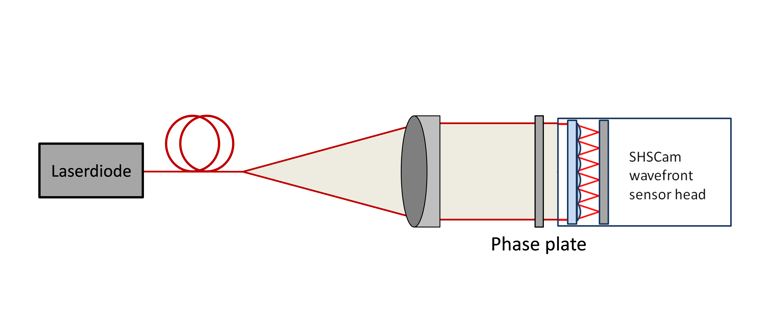

In the experimental setup, the light from a fibre coupled laser diode emitting at a wavelength of 635 nm is collimated and passed through a spiral phase plate. The Shack-Hartman wavefront sensor SHSCam-BR-110-GE with a lateral resolution of 58 x 43 microlenses is placed directly behind the phase plate in order to minimise wavefront propagation effects. For the sake of simplicity, no relay optics were used. At first, a measurement with the phase plate removed from the beam path is taken and used as a reference for the subsequent measurements. Spiral phase plates with different topological charges of 1, 2 and 3 were measured.
Test results
Due to the phase discontinuity present in helical wavefronts, classic Shack-Hartman wavefront reconstruction algorithms fail to calculate the helical wavefront. However, in order to analyse the influence of the spiral phase plate on the transmitted wave, it is usually sufficient to evaluate the spot displacement distribution detected by the wavefront sensor, which actually represents the gradient field of the corresponding wavefront.
SHSWorks is a powerful and comprehensive wavefront analysis software package that allows complete Zernike polynomial analysis, PSF/MTF calculation, laser beam parameter calculation and refractive data. The software offers functionality to automatically remove tilt and defocus from the spot field, which is necessary for the analysis of the helical gradient field and the comparison with simulation results. In addition, SHSWorks calculates the topological charge, l , from the gradient field by evaluating the following path integral:
The table below shows the topological charges resulting from the measurement of 15 different spiral phase plates, consisting of three sub-groups with a topological charge of 1, 2 and 3 respectively. The deviation of lmeasured from ldesign results from the discretization due to the limited number of sampling points.
