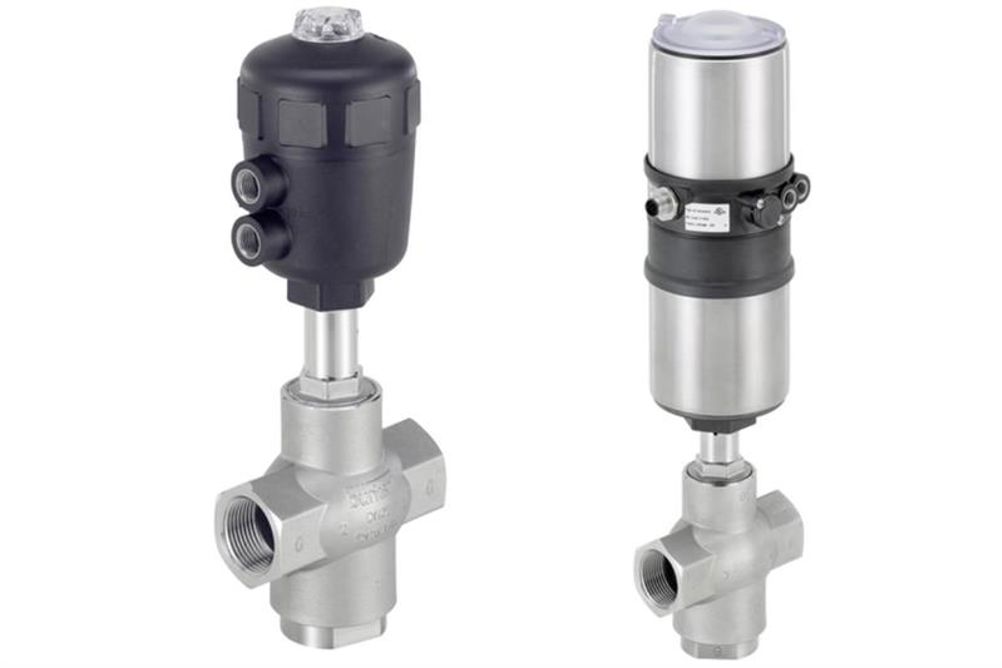

The Type 2006 seat valve is available in two different materials, PA or PPS, depending on the ambient temperature. Available materials for the valve body include stainless steel and a brass/stainless steel variant. Interchanging of pressure and service ports enables different fluidic circuit functions, such as the mixing or distributing of mediums.
The flow-optimised valve body of both valves allows for excellent flow rates. The adjusting gland secures a high level of tightness ensuring reliable operation over years.
The 3 way valve Type 2006 is controlled by a pilot valve, or by centralised automation using a valve island and can be equipped with an electrical position indicator. The compact Type 2006 is often seen as an economic alternative instead of two single shut-off valves.
The design of the 3 way valve, Type 2106, offers all the advantages of a modern, decentralised automation: The directly connected control head and actuator provide a compact and smooth design, integrated pneumatic lines, protection class IP65/67/NEMA4X, and a high chemical resistance. An optionally integrated fieldbus interface through to an explosion-proof control head are further advantages of the 3 way shut-off valve. The compact Type 2106 can be used as an economical alternative to two single valves.
