The encoders’ environmental specification includes an operating temperature range of - 40 to 100°C; shock is rated to 3000m/s2 with vibration to 200m/s2.

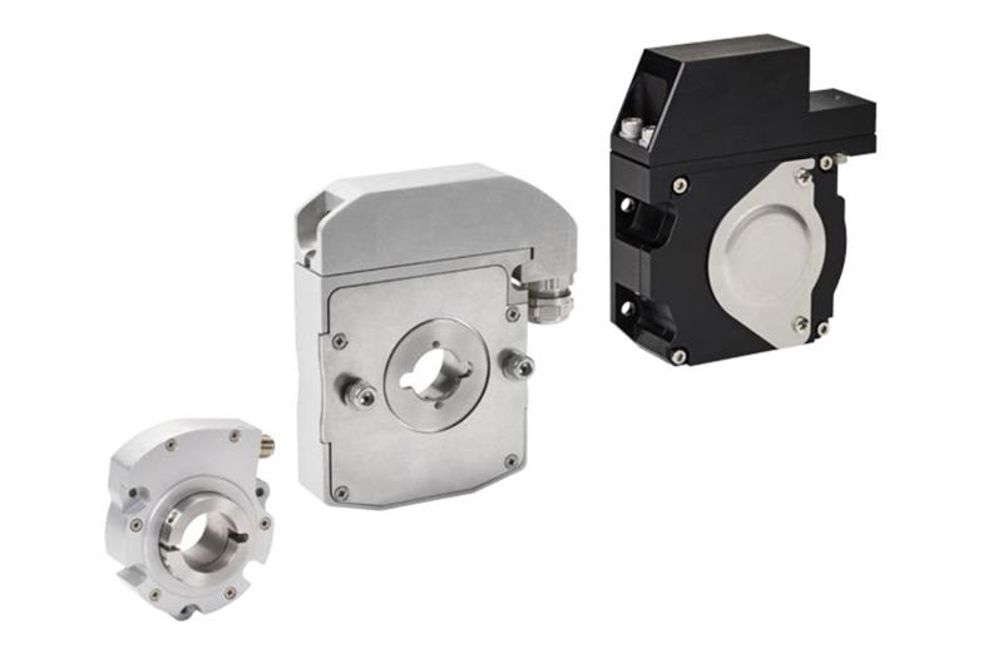

The LP series features an aluminium housing with a nominal square size of 90mm and is offered in three model variants with programmable resolution versions and a choice of shaft interfacing and electrical termination options. A compact cable or connector version facilitates straightforward installation in confined spaces whilst a terminal box option makes safe pre-wiring a possibility. Both options are offered with a width of 26mm whilst the third version is a 51mm wide ATEX-IECx rated explosion proof model with terminal box.
Incremental encoder versions have HTL-TTL outputs with a maximum resolution of 10,000ppr and are available with a programmable resolution which also provides commutation channels. Absolute versions feature a single turn resolution of up to 16-bits with an SSI output – also available as a programmable option. Enhanced electronics options on some models provide protection against mis-wiring, overvoltage protection up to 60V, and strong signal output for longer cable runs.
