The Viking Lite series offers a choice of three port sizes, G1/8, G1/4 and G3/8, in a compact design with direct body porting and integral mounting holes for a solution that can be used in a range of industrial applications.
Robust performance and long service life are offered through Parker's Wear Compensation System. Fitted with bi-directional spool seals, the range is said to operate comfortably at pressure up to 10 bar and in ambient temperatures from -10 to 50ºC and is able to deliver 10 million operating cycles.

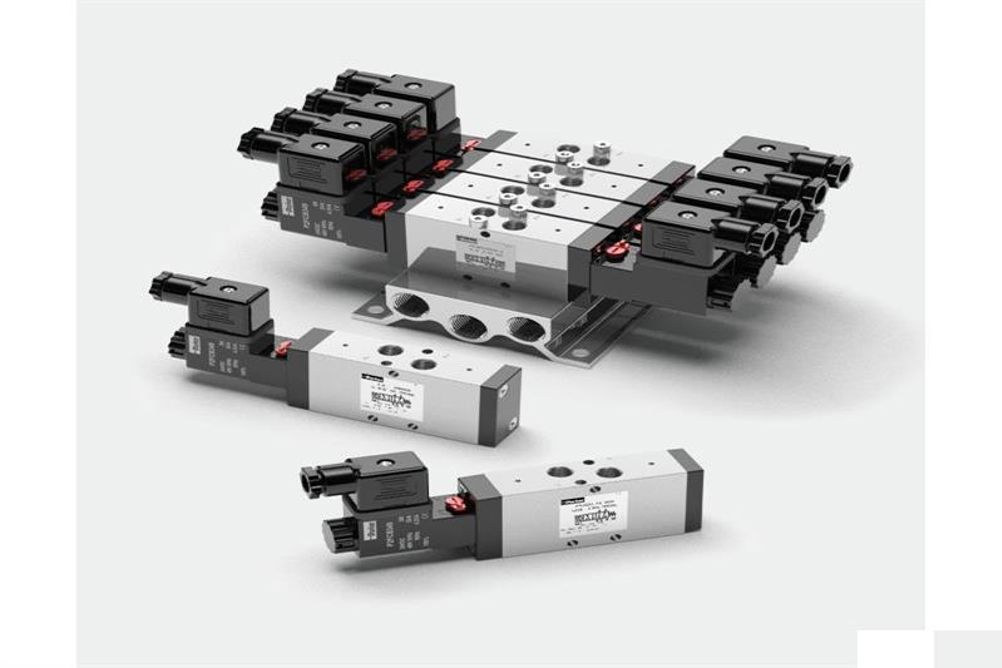

In addition to single valve installation, Viking Lite gives designers the flexibility to install the valves in two ways; a manifold bar installation with common ducts for ports 1, 3 and 5, with space for between 2 and 14 valves, or a pressure bar installation for common primary air supply. When pressure bars are used, restrictor-silencers can be installed in the exhaust ports of each valve, for individual adjustment of cylinder or air motor speed. Pressure bars are available in a number of different sizes, with space ranging from 2 to 10 valves.
